Diffused Batten – Square (Narrow Body) – SDBN 236 (T8)

Feature

Suitable for ceiling, wall or pendant mounting. AA12 prismatic diffuser for visual comfort. New Plastic snap-on and caps for easy installation of diffuser.

Application

–

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

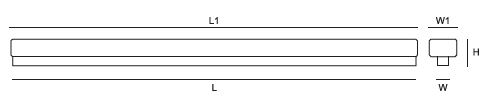

Dimension

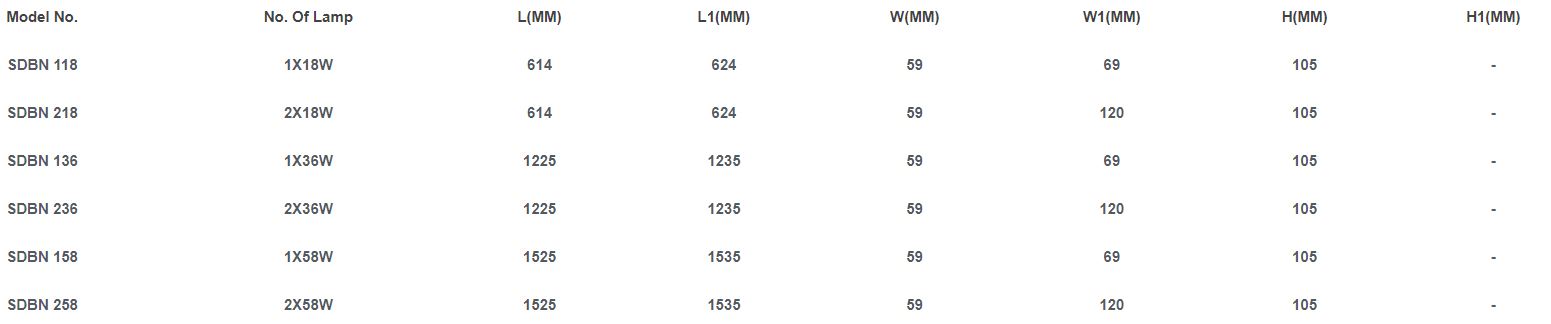

Ordering Information
