Diffused Batten – Square – SBD 228 (T5)

Feature

Design for ceiling, wall and pendant using suspension system with round, obround or square daikon diffuser for visual comfort. This fitting improves on visual comfort by reducing direct glare from the fluorescent tube. Lighting fixtures for more diffused light which softens surrounding objects. New plastic snap-on end-cap using variety type of diffuser for good upward light distribution and aesthetic appeal.

Application

Ideal for most application.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Whide choice of diffuser type for selection

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

3 amp Fused Terminal Block, Emergency Packs & Opal Diffuser.

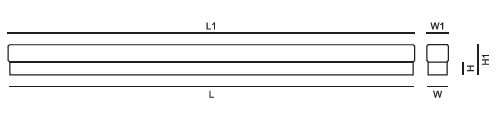

Dimension

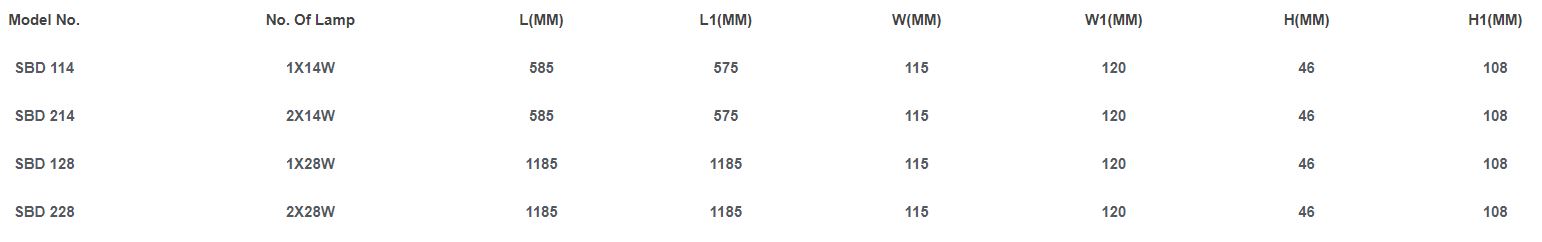

Ordering Information
