Downlight – Recessed Horizontal – Pluto 108

Feature

Separate gear box for control gear installation. Deep cell of deep lamp height for the glare control. LOR more than 70%. Full data is available upon request for interior Lux design.

Application

Ideal for commercial building, offices, conference rooms, classrooms, shops, etc.

Download

Specification

Body & Ring

Made of cold rolled steel.

Glass

Tempered glass.

Reflector

High quality specular/matt finish aluminum.

Paintwork

Coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Compact fluorescent lamp of PL-C 18W & 26W.

Electrical Data

240V, 50Hz Power factor 0.9

Wattage

PLC - 18W/26W

Wire

HR 105° C

Ballast

Polyester vacuum impregrated.

Lampholder

G24d/G24q

Condenser

Metallized polypropylene film.

Control Gear Box

Separate

Optional Components

Electronic ballast/Emergency pack.

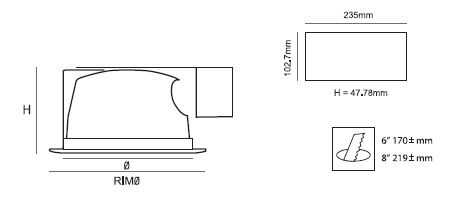

Dimension

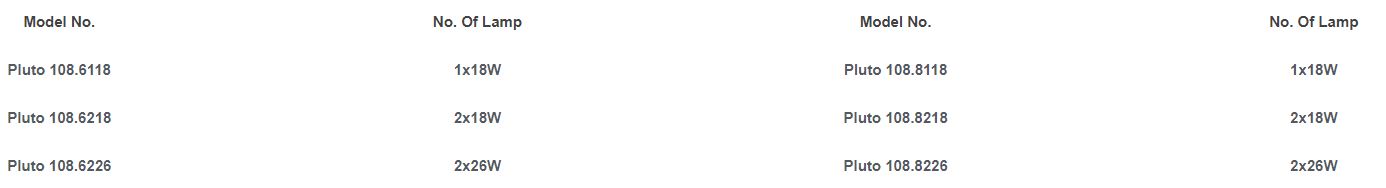

Ordering Information
