Recessed/Surface Mounted – MOL Fitting (Metric) – Singapore – SSM 228 (MM) (T5)

Feature

Designed for recess imperial exposed T-bar ceiling mounting with single parabolic mirror optic louvre with Christmas profile cross blades. Louvres reflection by means of slide lock set and can be lowered and hang from either side.

Application

Ideal for offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Anodized aluminum in either specular, semi specular or matt with profile cross blades.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W, 28W.

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

Dimension

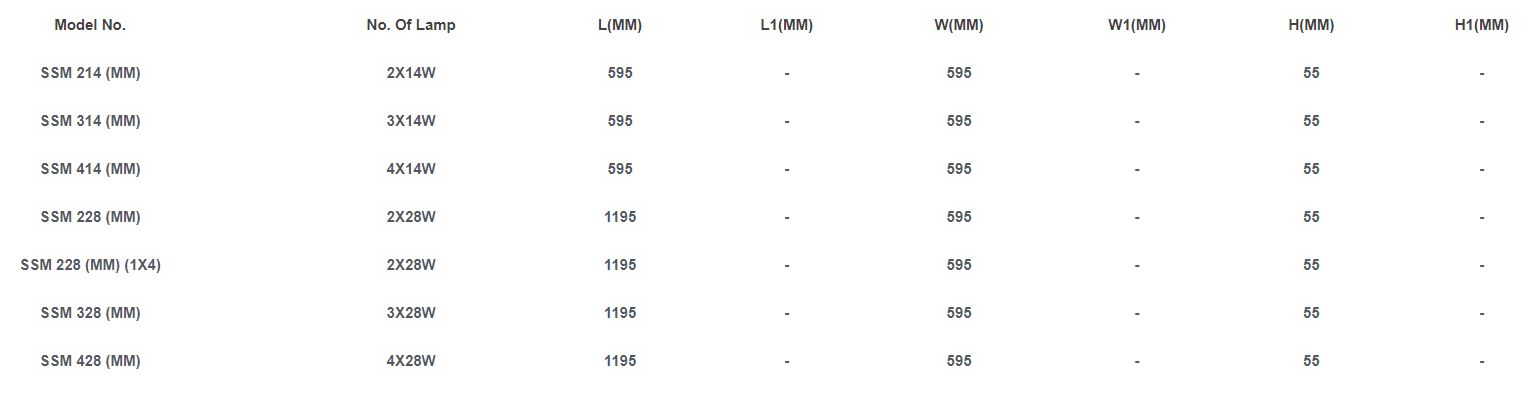

Ordering Information
