Recessed T-Bar Mounted – Clean Room Fitting (Imperial) – IP54 – SRC 214 (IP54) (T5)

Feature

Designed for recess mounting ceiling or direct mounting ceiling. Diffuser designed in normal hinged on either side for easy maintenance. Provided even light distribution glare control and maximum light transmission, combined with a very low luminosity at angels approaching the horizontal surface. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.

Application

Ideal for locations where good horizontal illumination is important.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W, 28W.

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Gasket

Elastomeric Nitrile Foam Material (IP54)

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency packs.

Dimension

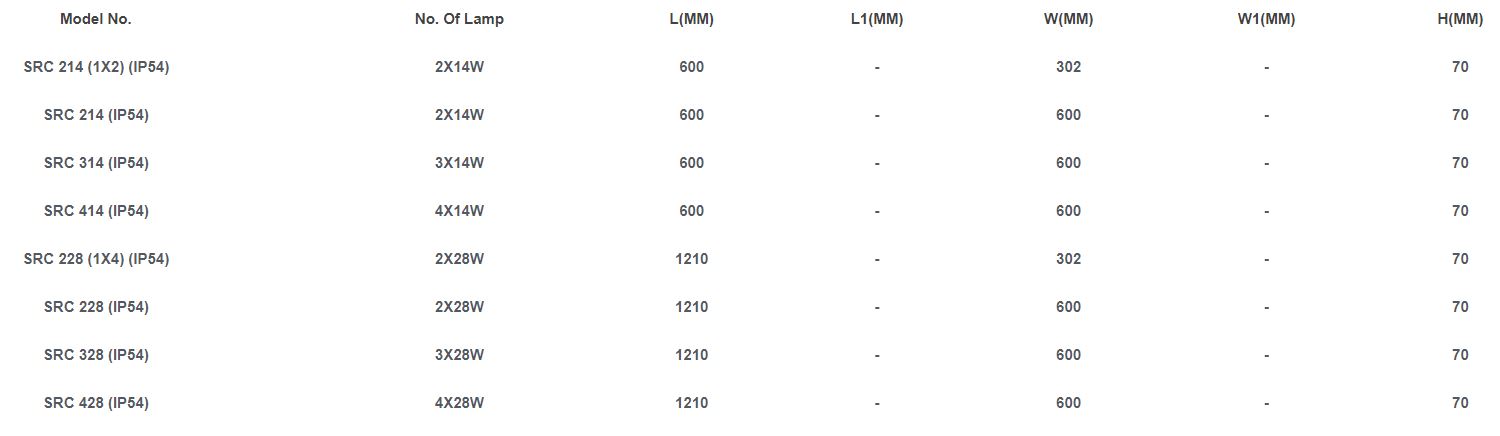

Ordering Information
