Recessed T-Bar Mounted – Clean Room Fitting (Imperial) – SAC 240 CRF (T8)
Feature
Designed for recess mounting ceiling or direct mounting ceiling. Diffuser designed in normal hinged type for easy maintenance. Provided even light distribution glare control and maximum light transmission. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.
Application
Ideal for technical workshop, laboratories, offices and supermarkets.
Download
Specification
Body
Made of heavy gauge sheet steel.
Diffuser
Wide choice of diffuser type for selection.
Paintwork
Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.
Light Source
Fluorescent TLD lamp of 18W/20W & 36W/40W
Electrical Data
240V, 50Hz, Power factor 0.9
Wire
HR 105° C
Ballast
Polyester Vaccum Impregnated.
Condenser
Metallised Polypropylene Film.
Starter
SERIES (WW-22W), SINGLE (4W-80W)
Lampholder/Starterholder
Moulded from Polycarbonate Material
Optional Component
Fused terminal block/Electronic ballast/Emergency pack/6W extra low loss ballast.
Optional Light Source
SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).
Dimension

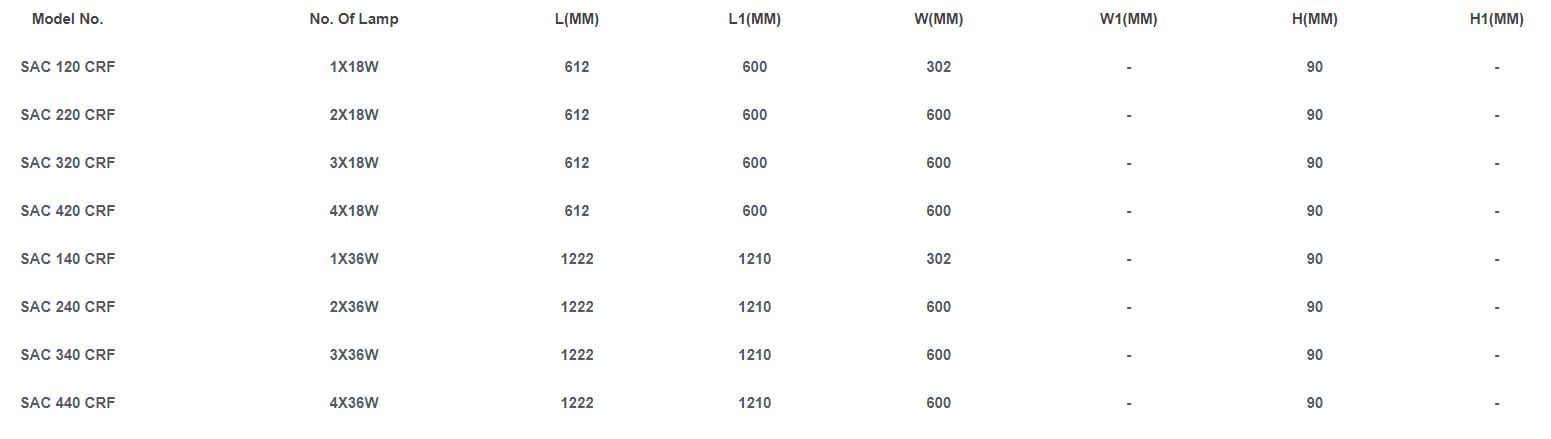

Ordering Information
