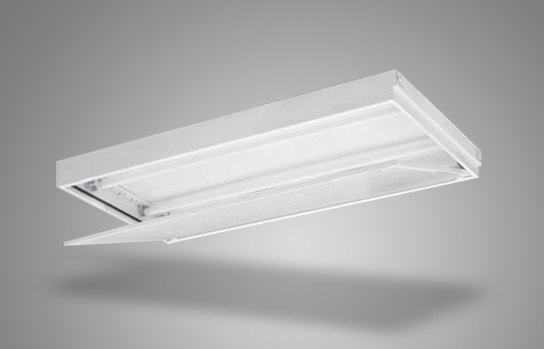

Recessed T-Bar Mounted – Clean Room Fitting (Metric) – SAC 240 CRF (MM) (T8)

Feature

Design for recess mounting ceiling or direct mounting ceiling. Diffuser designed in normal hinged type for easy maintenance. Provided even light distribution glare control and maximum light transmission. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.

Application

Ideal for technical workshop, laboratories, offices and supermarkets.

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18/20W & 36/40W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack/6W extra low loss ballast.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

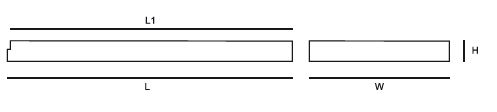

Dimension

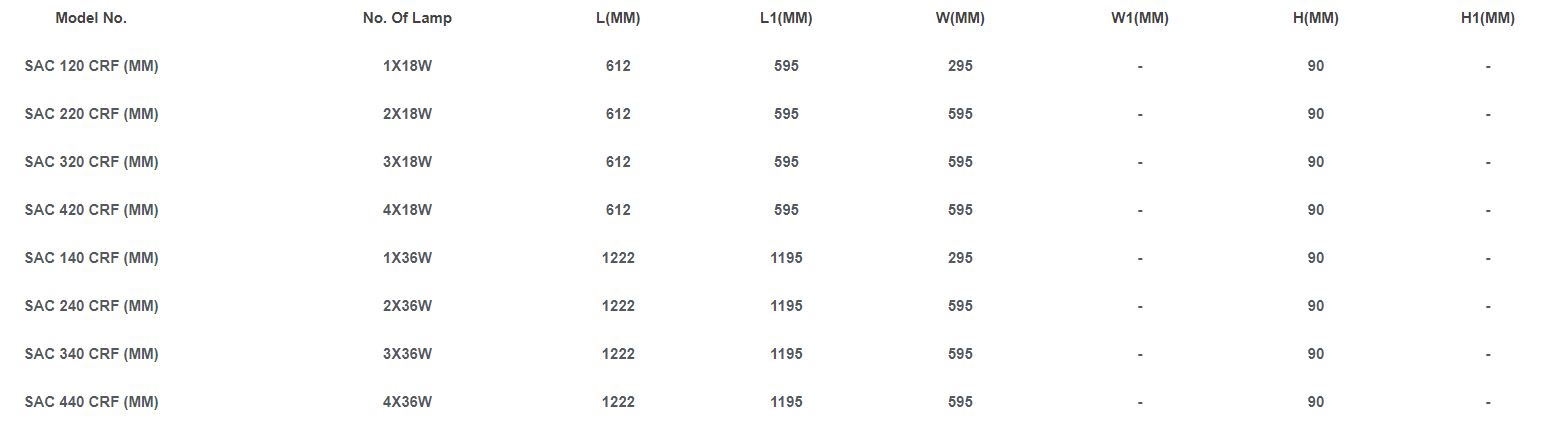

Ordering Information
