Recessed T-Bar Mounted – Diffused Fitting – Hinged (Imperial) – SRH228 (T5)

Feature

Designed for recess mounting ceiling or direct mounting ceiling. Diffuser designed in normal hinged type for easy maintenance, protection diffuser for squash/ tennis court. Provided even light distribution glare control and maximum light transmission, combined with a very low luminosity at angles approaching the horizontal surface. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.

Application

Ideal for location where good horizontal illumination is important. Mainly used for technical workshop, laboratories, offices and supermarkets.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Condenser

Moulded from Polycarbonate Material

Dimension

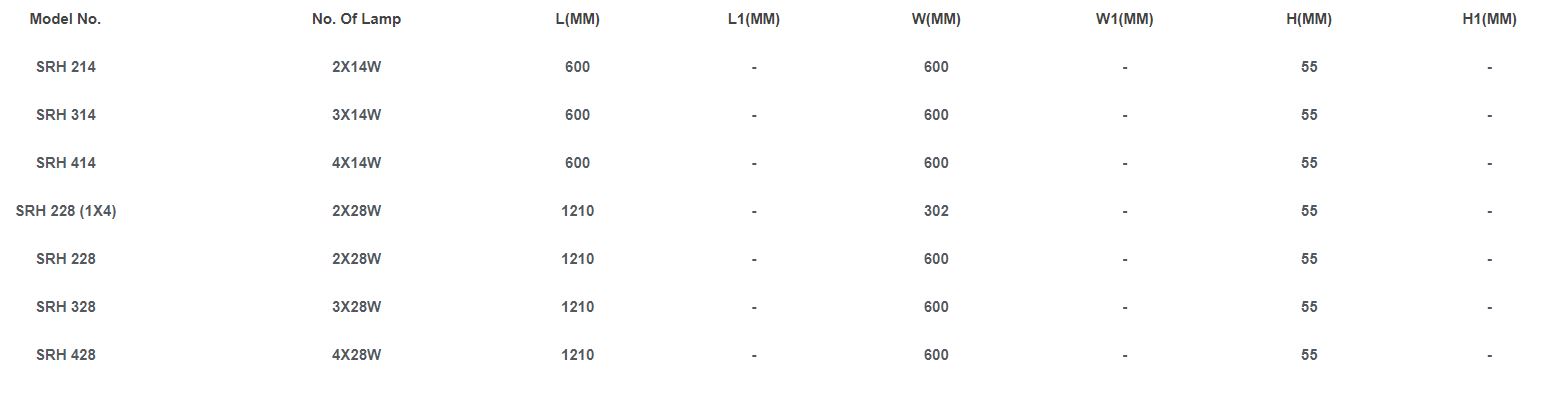

Ordering Information
