Recessed T-Bar Mounted – Diffused Fitting – Hinged (Metric) – SAC 240 (HD)(MM) (T8)

Feature

Designed for exposed T-bar ceiling grind. Diffuser designed in normal hinged for either side for easy maintenance. Provided even light distribution glare control and maximum light transmission, combined with a very low luminosity at angle approaching the horizontal surface. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection.

Application

Ideal for locations where good horizontal illumination is important.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type of selection.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

Dimension

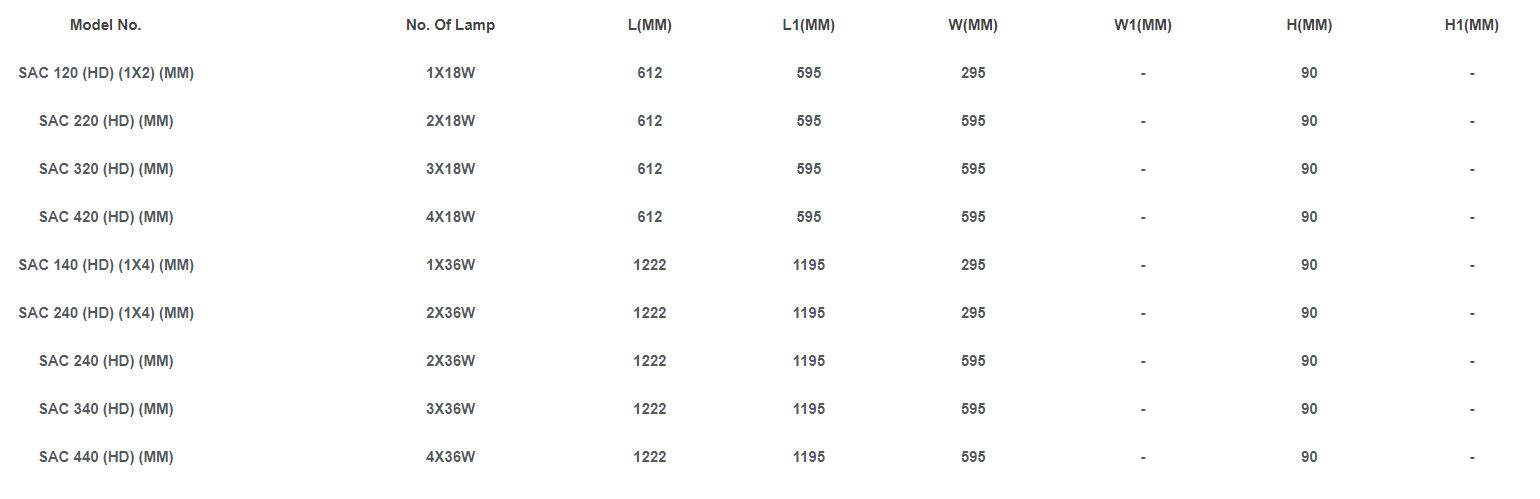

Ordering Information
