Recessed T-Bar Mounted – Diffused Fitting – Hinged (Metric) – SRH 228 (MM) (T5)
Feature
Designed for recess mounting ceiling or direct mounting ceiling. Diffuser designed in normal hinged type for easy maintenance, protection diffuser for squash/ tennis court. Provided even light distribution glare control and maximum light transmission, combined with a very low luminosity at angles approaching the horizontal surface. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.
Application
Ideal for location where good horizontal illumination is important. Mainly used for technical workshop, laboratories, offices and supermarkets.
Download
Specification
Body
Made of heavy gauge sheet steel.
Diffuser
Wide choice of diffuser type for selection
Paintwork
Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.
Light Source
Fluorescent T5 lamp of 14W & 28W
Electrical Data
240V, 50Hz, Power factor 0.95
Wire
HR 105° C
Ballast
Electronic Ballast
Condenser
Moulded from Polycarbonate Material
Dimension

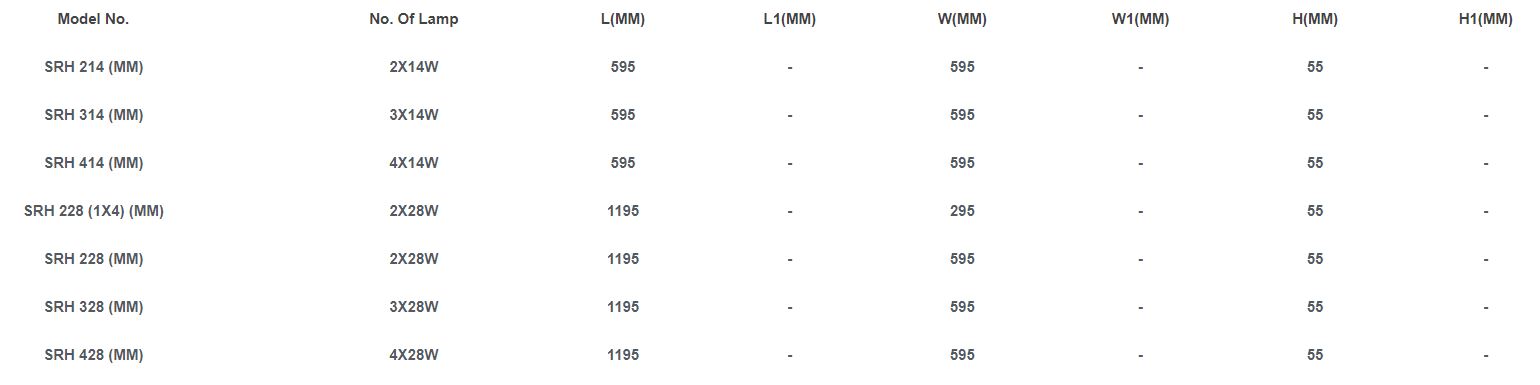

Ordering Information
