Recessed T-Bar Mounted – MOL Fitting (Metric) – SAC 240 MM MOL (T8)
Feature
Designed for recess imperial exposed T-bar ceiling mounting with single parabolic mirror optic louvre with Christmas profile cross blades. Louvres reflection by means of slide lock set and can be lowered and hang from either side.
Application
Ideal for general lighting in offices, supermarkets and complexes.
Download
Specification
Body
Made of heavy gauge sheet steel.
Louvers
Anodized aluminum in either specular, semi specular or matt with profile cross blades.
Paintwork
Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.
Light Source
Fluorescent TLD lamp of 18W, 36W.
Electrical Data
240V, 50Hz, Power factor 0.9
Wire
HR 105° C
Ballast
Polyester Vaccum Impregnated.
Condenser
Metallised Polypropylene Film.
Starter
SERIES (WW-22W), SINGLE (4W-80W)
Lampholder/Starterholder
Moulded from Polycarbonate Material
Optional Component
Fused terminal block/Electronic ballast/Emergency pack.
Optional Light Source
SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

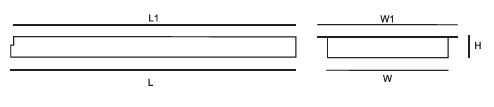

Dimension

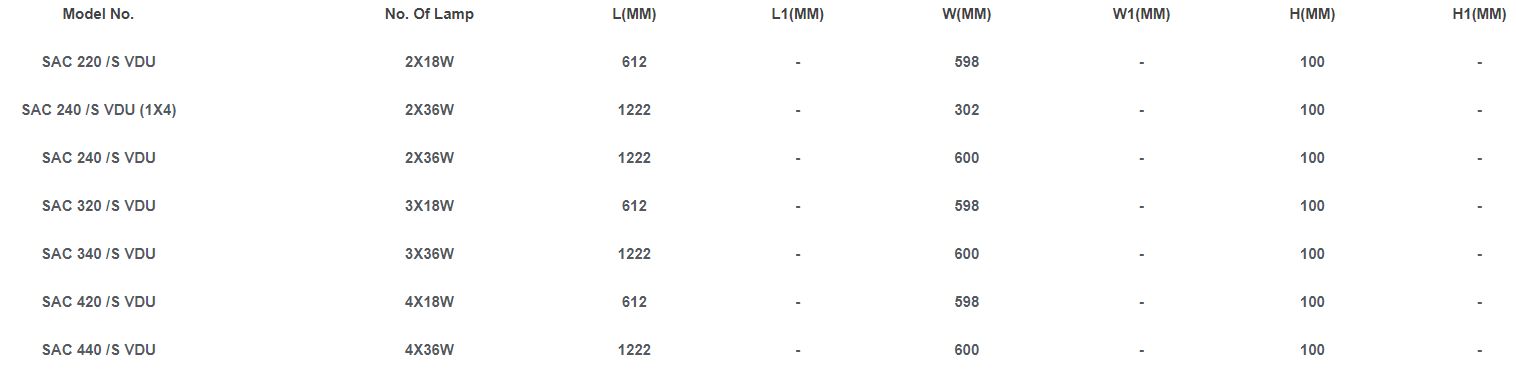

Ordering Information
