Recessed T-Bar Mounted – MOL Fitting – Perforated – SRP 228 (1×4) (T5)

Feature

Designed f0r recess imperial exposed T-bar ceiling mounting with single parabolic mirror optic louvre with Christmas profile cross blades. Louvres reflection by means of slide lock set and can be lowered and hang from either side.

Application

Ideal for general lighting in offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Perforated sheet or white sheet

Reflector

Anodized aluminum in either specular, semi specular or matt with profile cross blades.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 14W, 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

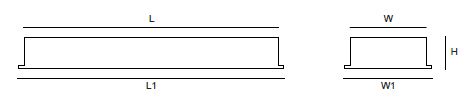

Dimension

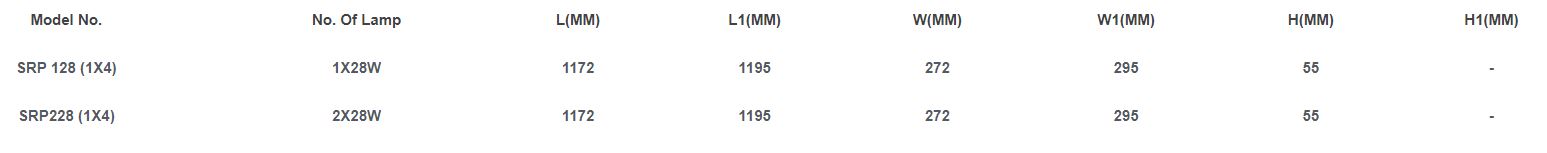

Ordering Information
