Recessed T-Bar Mounted – VDU Fitting (Imperial) – SAC 340 VDU (T8)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ cd/m² at reference angle above 65° all round. Designed for recessed exposed T-bar ceiling mounting double parabolic mirror optic louvre.

Application

Ideal for general lighting in offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

High quality anodized aluminum

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

Dimension

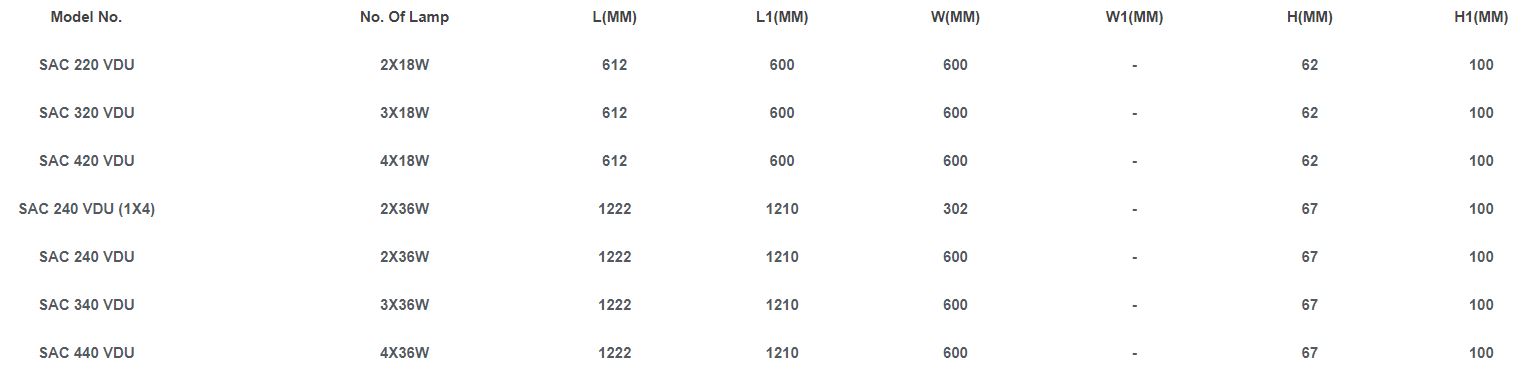

Ordering Information
