Recessed T-Bar Mounted – VDU Fitting – Luxalon – STP 314 (T5)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ 1000 cd/m² at reference angle above 65° all round. Designed for recessed mouting with double parabolic mirror optic louver.

Application

Ideal for general lighting in offices and shops.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Anodized aluminum in either specular, semi specular or matt with profile cross blade.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

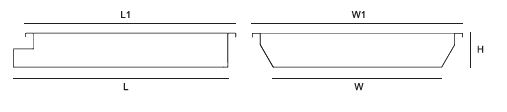

Dimension

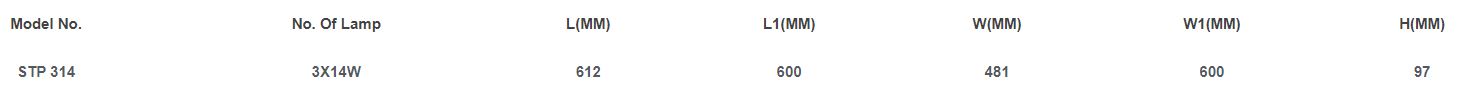

Ordering Information
