Recessed T-Bar Mounted – VDU Fitting – Perforated (Imperial) – SAC 320 VDU (PF) (T8)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ 1000 cd/m² at reference angle above 65° all round. Available in single, twin , triple or quadruple lampways. Lift or tilt, wishbone spring, rocket bolt or spring clip installation.

Application

Ideal for office, schools, libraries, government building, commercial building where VDT Terminal are frequently used.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Perforated sheet or white sheet

Reflector

High quality specular anodized aluminum

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

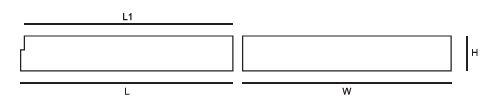

Dimension

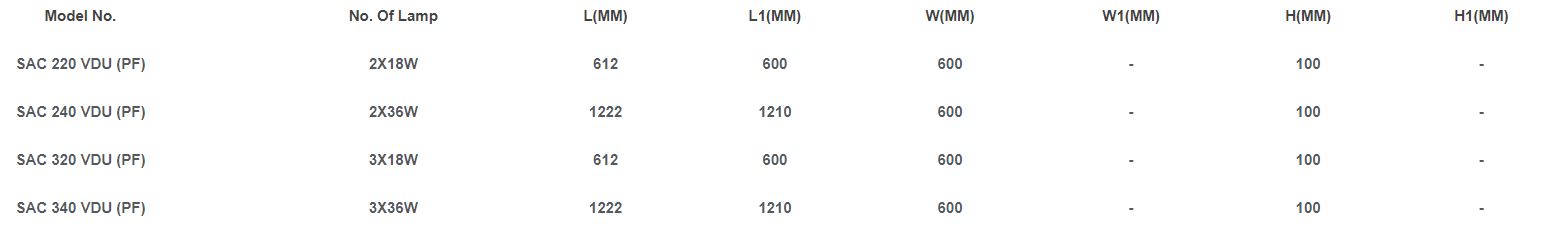

Ordering Information
