Recessed T-Bar Mounted – VDU Fitting – SRU 128 (1×4) (T5)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ 1000 cd/m² at reference angle above 65° all round. Designed for recess mounting with double parabolic mirror optic louvre. Exceptional performance with LOR’S in excess of 90%

Application

Ideal for general lighting in offices and shops.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvre

High quality anodized aluminum

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W, 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

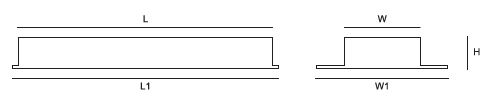

Dimension

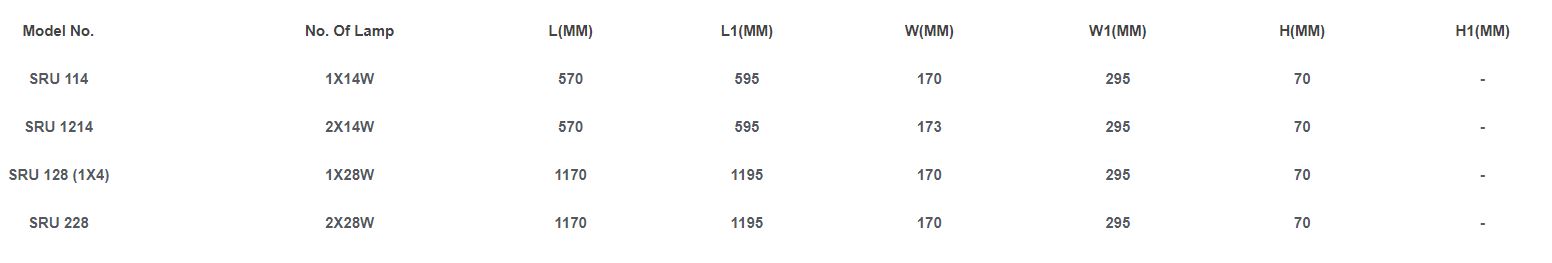

Ordering Information
