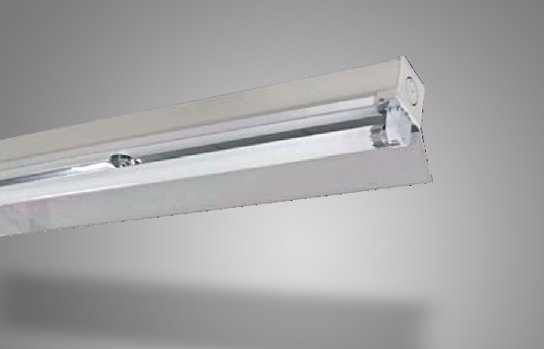

Reflected Batten – Symmetrical (Aluminium) – SBY 128 (T5)

Feature

Suitable for ceiling mounting or pendant mounting with suspension system. Symmetrical metal reflector for directional light distribution. Reflector held securely by treaded nut, offering large screw area using hand for fast installation. Allow a wide and efficient direct distribution of light. Discrete appearance achieved with adjustable lampholder. End to end continuously mounting from performed punch out type without additional drilling required.

Application

Ideal for direct wide distribution application.

Download

Specification

Body

Made of heavy gauge sheet steel.

Reflector

Aluminum Reflector

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic ballast

Lampholder/Starterholder

Moulded from Polycarbonate Material.

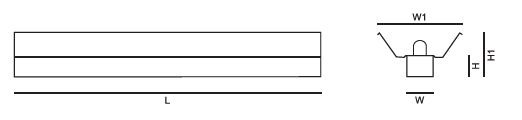

Dimension

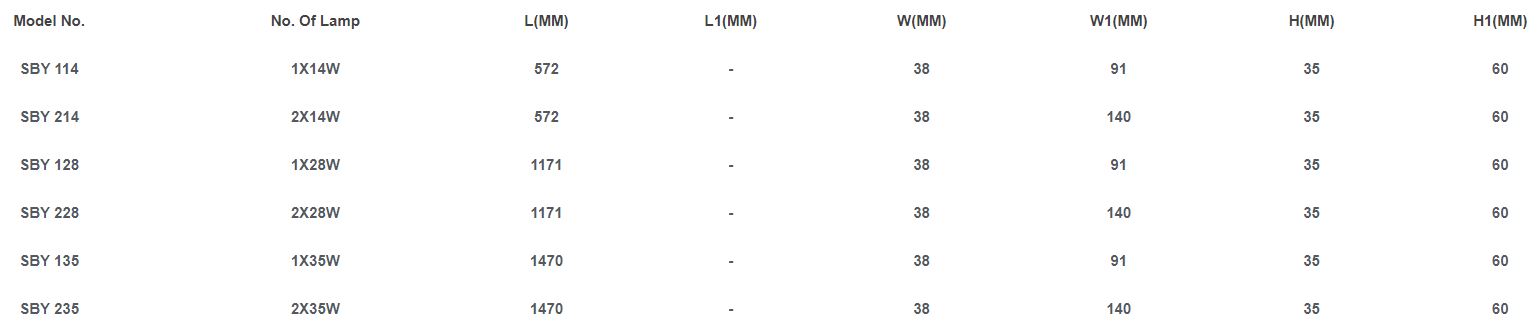

Ordering Information
