Reflected Batten – V Type – SB 240 V Type (T8)

Feature

Suitable for direct mounting ceiling, wall or pendant mounting suspension systems. Symmetrical aluminum or metal reflector for directional lighting. Allow a wide and efficient distribution of light. Discrete appearance achieved with adjustable lampholders. End to end continuously mounting from performed punch out type without additional drilling required. Providing maximum efficiency, economical and a pleasing appearance as well as a better light output.

Application

Ideal for most application in corridors, carparks, stair, garages, schools and etc.

Download

Specification

Body

Made of heavy gauge sheet steel.

Reflector

Aluminum Reflector

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W & 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

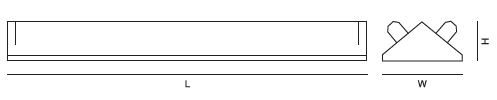

Dimension

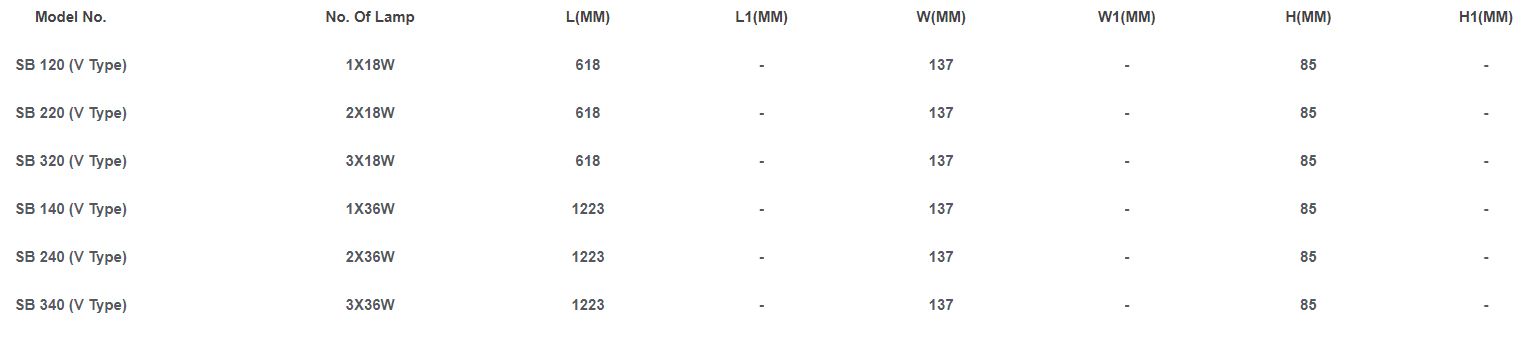

Ordering Information
