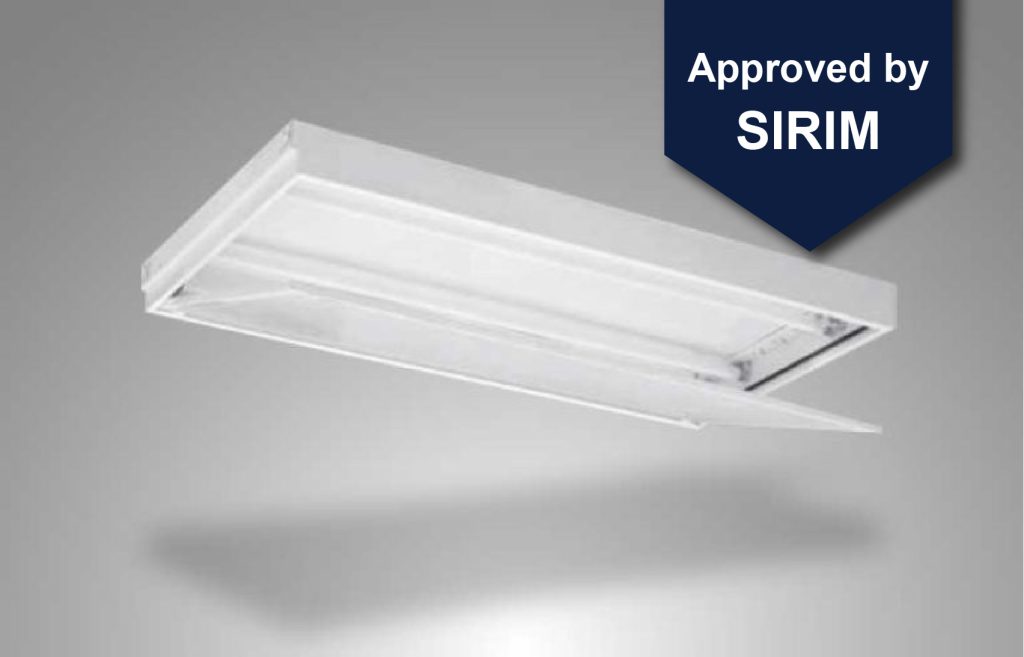

SAC 2C 240 CRF (IP54)
Feature
Designed for recess mounting ceiling. Diffuser designed in normal hinged type for easy maintenance. Provided even light distribution glare control and maximum light transmission. Optional convert to IP54 rating type with gasket to prevent the build-up of dust and dirt.
Application
Ideal for offices, retail stores, supermarkets, schools, hotels, factories, car parks and other indoor places to use.
Download
Specification
Model
SAC 2A 220 CRF (1X2) (IP54)
SAC 2A 220 CRF (IP54)
SAC 3A 320 CRF (IP54)
SAC 4A 420 CRF (IP54)
Nominal Power
16W
16W
24W
32W
Nominal System Lumen Output
1360 lm
1632 lm
2414 lm
2753 lm
Nominal System Efficacy
85 lm/W
100 lm/W
98 lm/W
85 lm/W
Model
SAC 2C 240 CRF (1X4) (IP54)
SAC 2C 240 CRF (IP54)
SAC 3C 340 CRF (IP54)
SAC 4C 440 CRF (IP54)
Nominal Power
28W
28W
42W
56W
Nominal System Lumen Output
2722 lm
3302 lm
4791 lm
8400 lm
Nominal System Efficacy
96 lm/W
116 lm/W
113 lm/w
150 lm/w
Light Source
SJ Lite T8 LED Tube (HE)
Colour Temperature (CCT)
3000K/ 4000K/ 6500K
Input Voltage
240V ~ 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
>0.9PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Ingress Protection
IP54

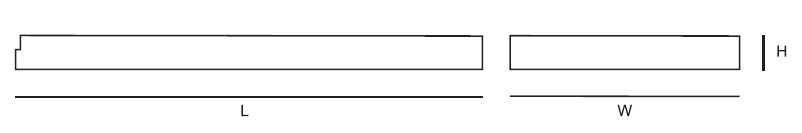

Dimension

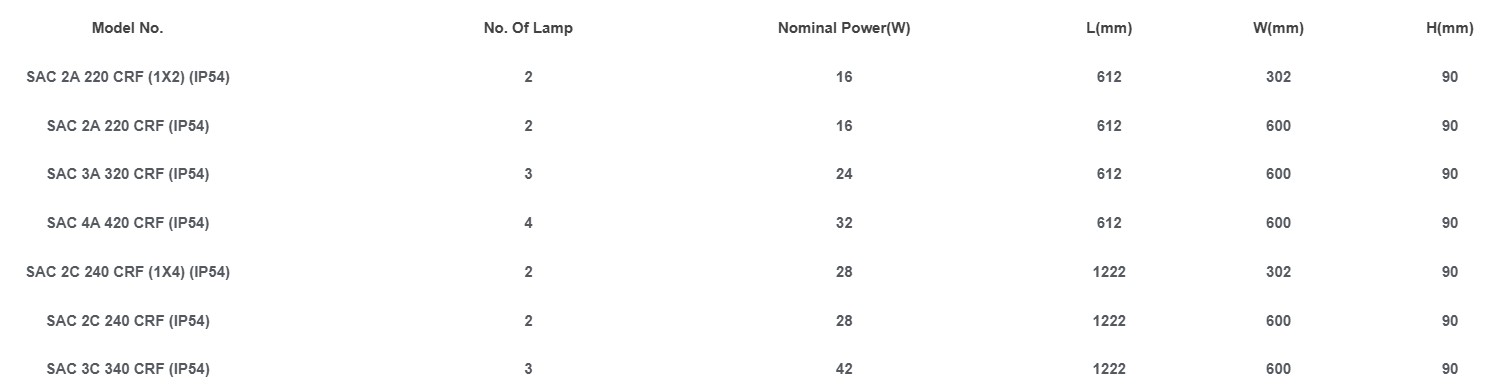

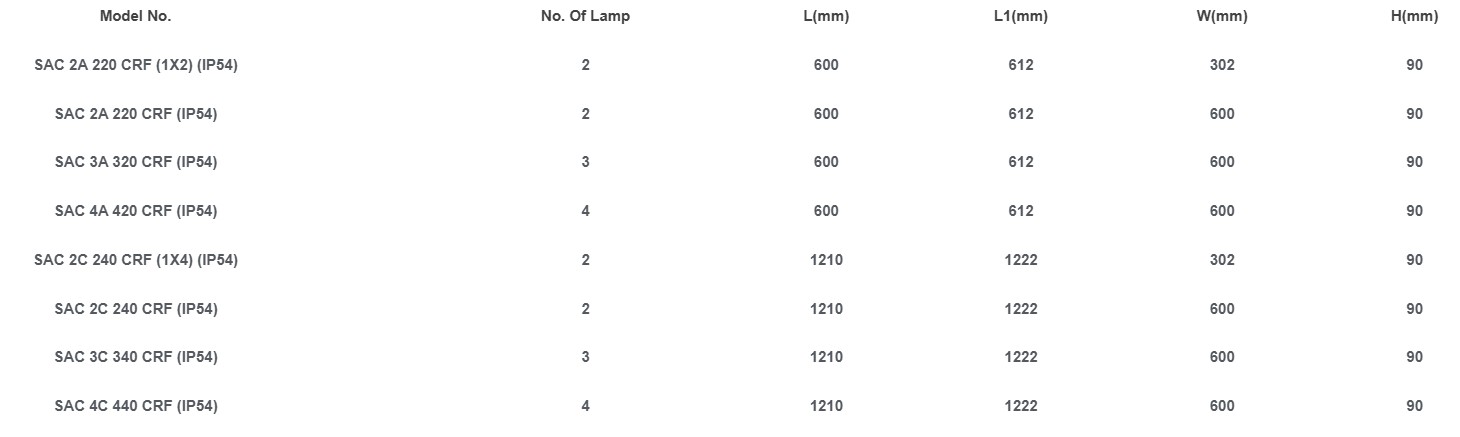

Ordering Information
