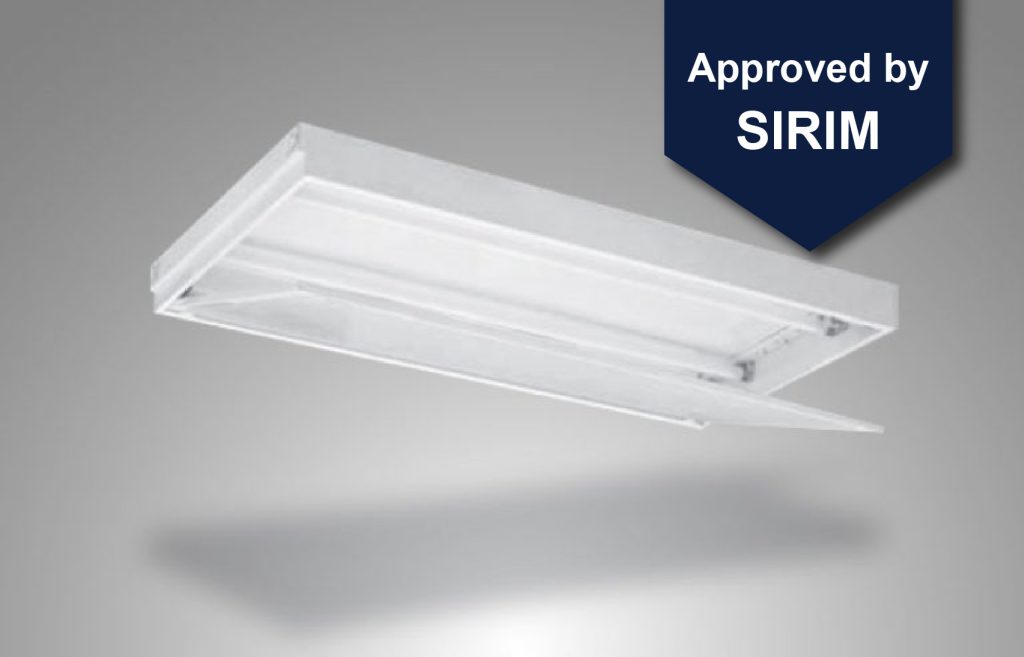

SAC 2C 240 (HD)
Feature
Designed for exposed T-bar ceiling grid. Diffuser designed in normal hinged for either side for easy maintenance. Provided even light distribution glare control and maximum light transmission, combined with a vary low luminosity at angle approaching the horizontal surface. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection
Application
Ideal for locations where good horizontal illumination is important.
Download
Specification
Model
SAC 2A 220 (HD) (1X2)
SAC 2A 220 (HD)
SAC 3A 320 (HD)
SAC 2C 240 (HD) (1X4)
SAC 2C 240 (HD)
SAC 3C 340 (HD)
Nominal System Lumen Output
1700 lm
1654 lm
2448 lm
2808 lm
3422 lm
4934 lm
Nominal System Efficacy
100 lm/W
102 lm/W
100 lm/W
102 lm/W
120 lm/W
118 lm/W
Light Source
T8 LED Tube
Colour Temperature (CCT)
3000K/ 4000K/ 6500K
Input Voltage
240V, 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
0.9
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Ingress Protection
IP20

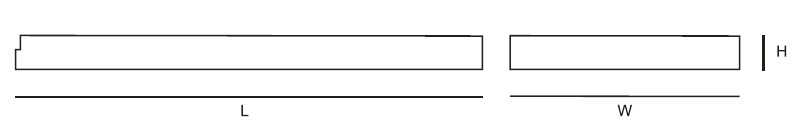

Dimension

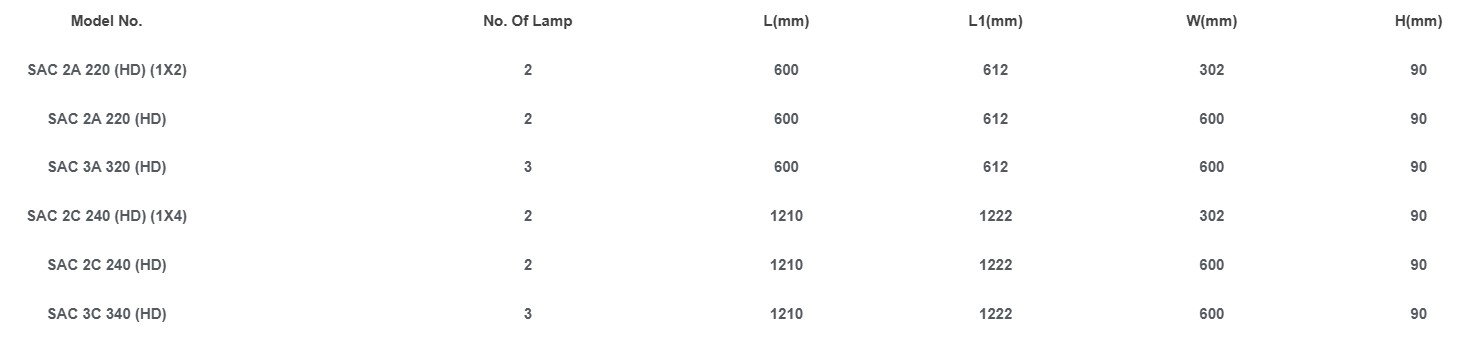

Ordering Information
