Products

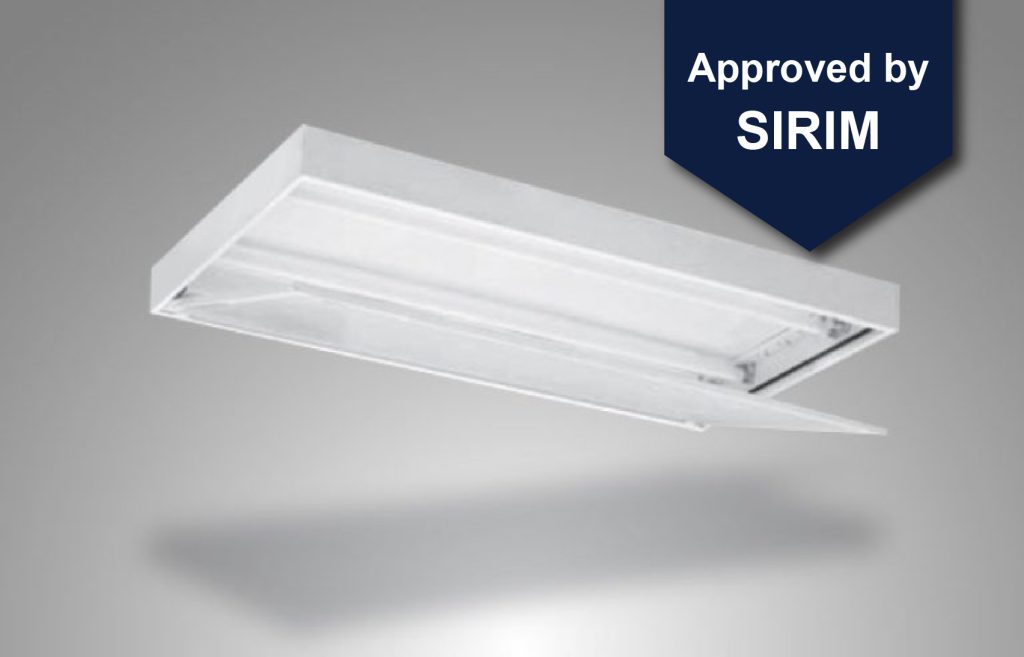

SAC 2C 240/S CRF (IP54)
Feature
Designed for direct mounting ceiling. Diffuser designed in normal hinged type for easy maintenance. Provided even light distribution glare control and maximum light transmission. IP54 rating type with gasket to prevent the build-up of dust and dirt.
Application
Ideal for used for technical workshop, laboratories, office and supermarkets.
Download
Specification
Model
SAC 2A 220/S CRF (IP54)
SAC 3A 320/S CRF (IP54)
SAC 4A 420/S CRF (IP54)
SAC 2C 240/S CRF (1X4) (IP54)
SAC 2C 240/S CRF (IP54)
SAC 3C 340/S CRF (IP54)
SAC 4C 440/S CRF (IP54)
Nominal System Lumen Output
1631 lm
2377 lm
4400 lm
2622 lm
3310 lm
4584 lm
8400 lm
Nominal System Efficacy
100 lm/W
98 lm/W
138 lm/W
94 lm/W
119 lm/W
117 lm/W
150 lm/W
Light Source
T8 LED Tube
Colour Temperature (CCT)
3000K/ 4000K/ 6500K
Input Voltage
240V, 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
0.9
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Ingress Protection
IP54

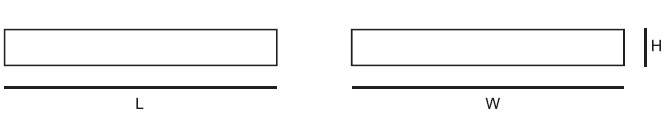

Dimension

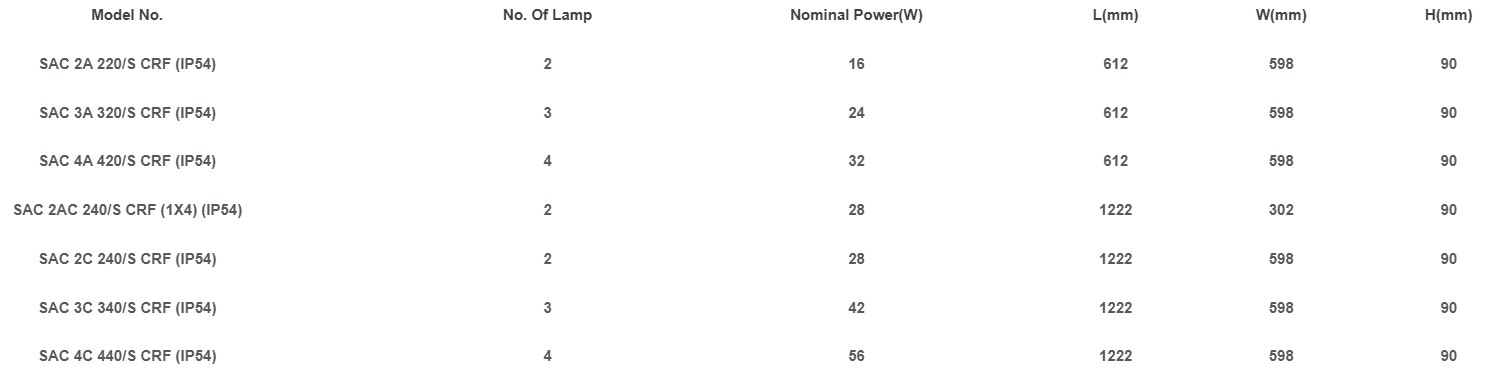

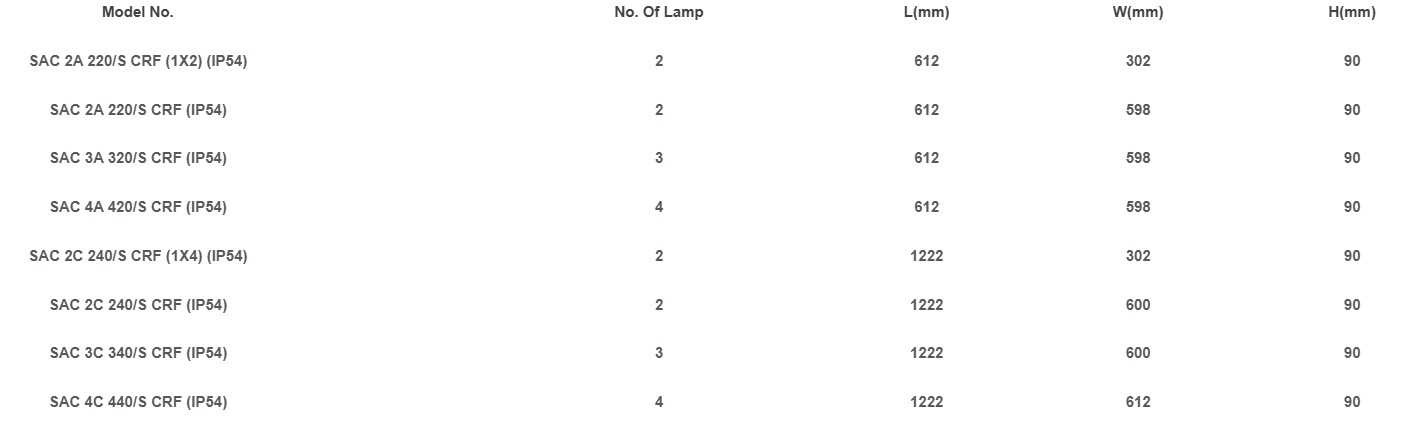

Ordering Information
