Products
SAC 2C 240/W MOL
Feature
Design for wood / plaster ceiling with single parabolic mirror optic louvre with Christmas profile cross blades. Louvres retained by means of slide lock set and can be lowered and hang from either side.
Application
Ideal for indoor application, offices, retail stores, supermarkets, schools and hotels.
Download
Specification
Model
SAC 2A 220/W MOL
SAC 3A 320/W MOL
SAC 2C 240/W MOL (1X4)
SAC 2C 240/W MOL
SAC 3C 340/W MOL
Nominal System Lumen Output
1577 lm
2559 lm
3013 lm
3597 lm
5321 lm
Nominal System Efficacy
98 lm/W
105 lm/W
108 lm/W
128 lm/w
126 lm/w
Light Source
T8 LED Tube
Colour Temperature (CCT)
3000K/ 4000K/ 6500K
Input Voltage
240V, 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
0.9
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Ingress Protection
IP20

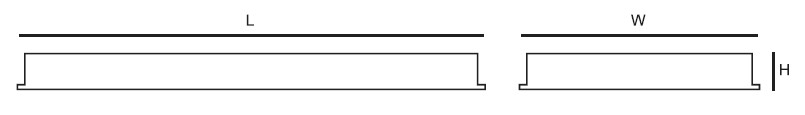

Dimension

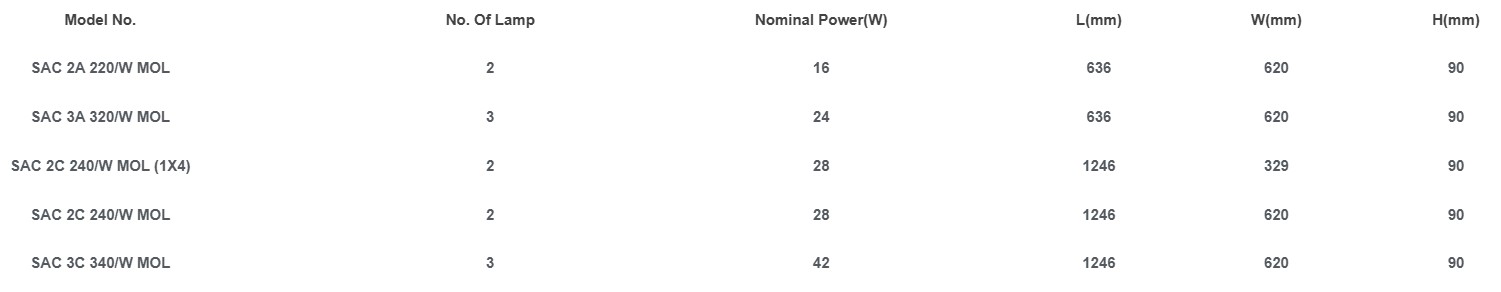

Ordering Information
