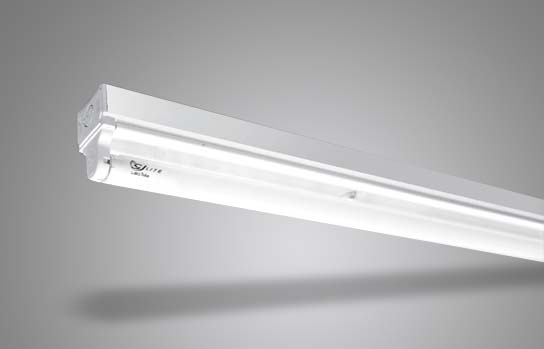

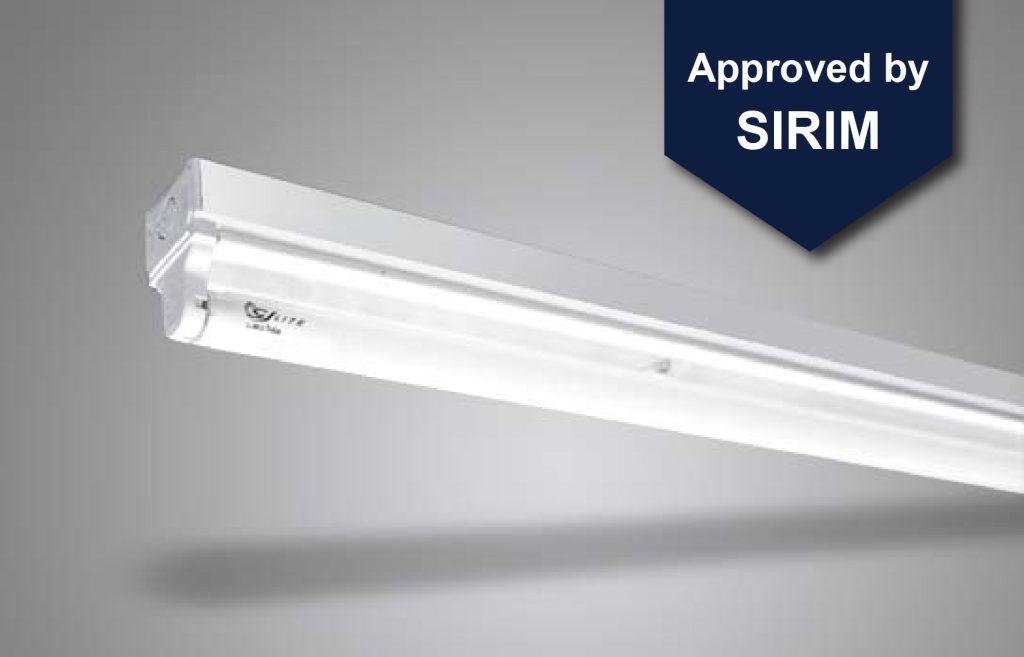

SB T8 Bare Batten

Feature

LED T8 batten provides maximum light output and energy efficient solution. Ideal replacement for traditional fluorescent T8. Suitable for a wide range of general lighting applications.

Application

Suitable for indoor application, corridors, staircase, walkway, lift lobby and schools.

Download

Specification

Model

SB 1A 120

SB 2A 220

SB 1C 140

SB 2C 240

Nominal System Lumen Output

1094 lm

1911 lm

2088 lm

4194 lm

Nominal System Efficacy

133 lm/W

118 lm/W

151 lm/W

150 lm/w

Light Source

T8 LED Tube

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

0.9 Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Cold Roll Steel

Ingress Protection

IP20

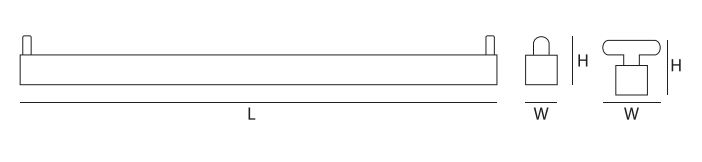

Dimension

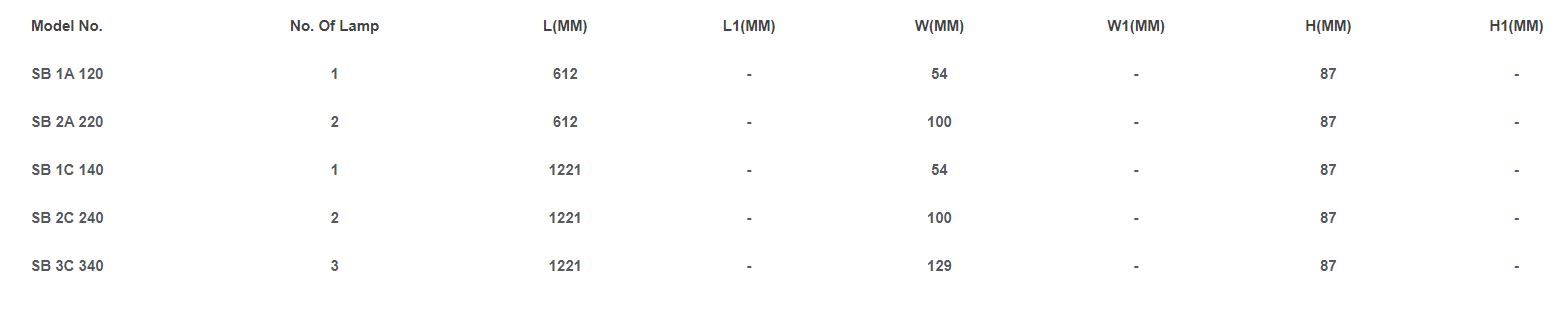

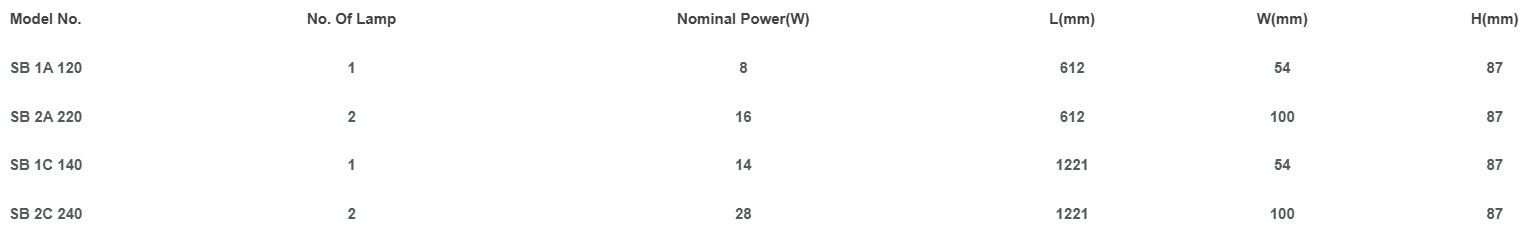

Ordering Information
