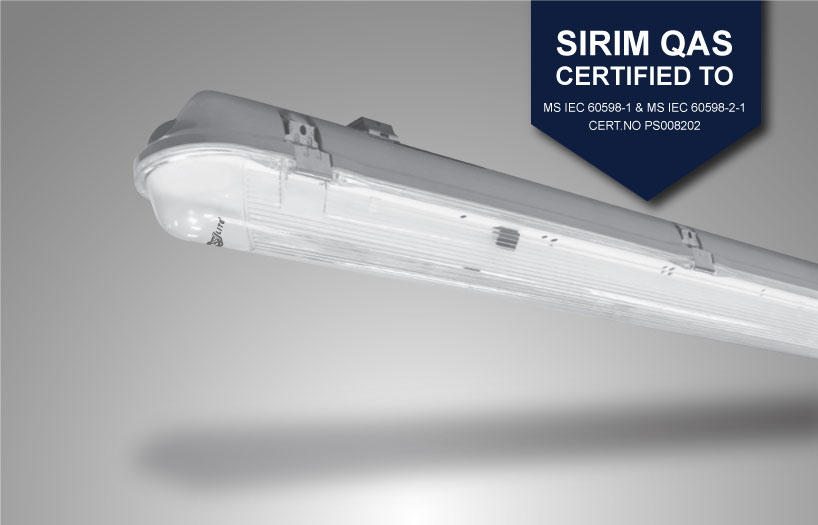

SCR T8 Weatherproof

Feature

IP 65 weatherproof light fitting is a durable, robust polycarbonate base and diffuser. Gear tray retaining strap for easy installation and maintenance. Knockout and IP gland supplied for connections and through wiring. Use only the fixing brackets supplied, screws should not be used directly through the base.

Application

Ideal for car parks, loading bays, corridors, warehouses, workshops and laboratories.

Download

Specification

Model

SCR 1A 120 (IP65)

SCR 2A 220 (IP65)

SCR 1C 140 (IP65)

SCR 2C 240 (IP65)

Nominal System Lumen Output

965 lm

1640 lm

1970 lm

3643 lm

Nominal System Efficacy

119 lm/W

104 lm/W

140 lm/W

131 lm/w

Light Source

T8 LED Tube

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

0.9 Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Polycarbonate

Ingress Protection

IP65

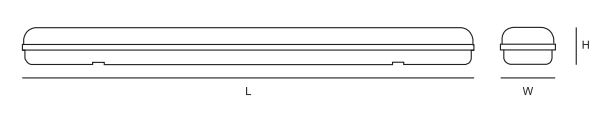

Dimension

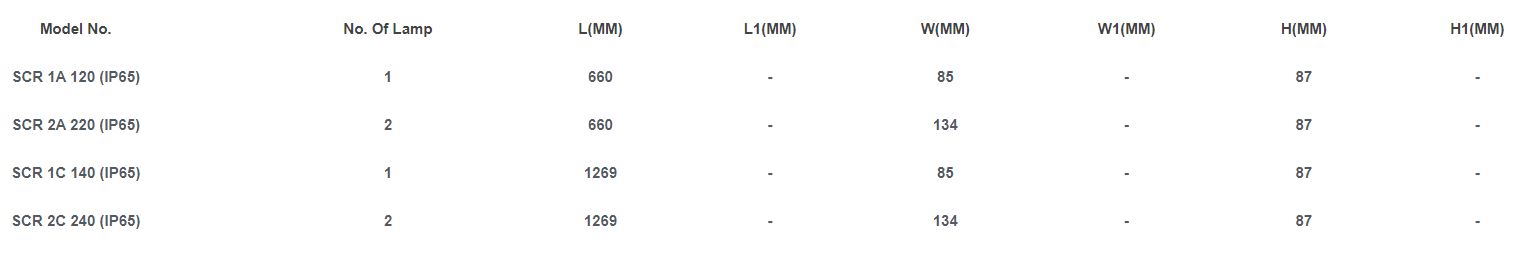

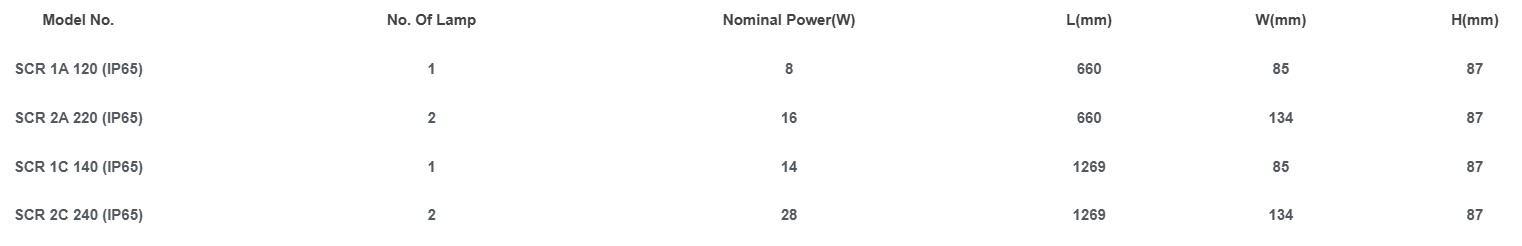

Ordering Information
