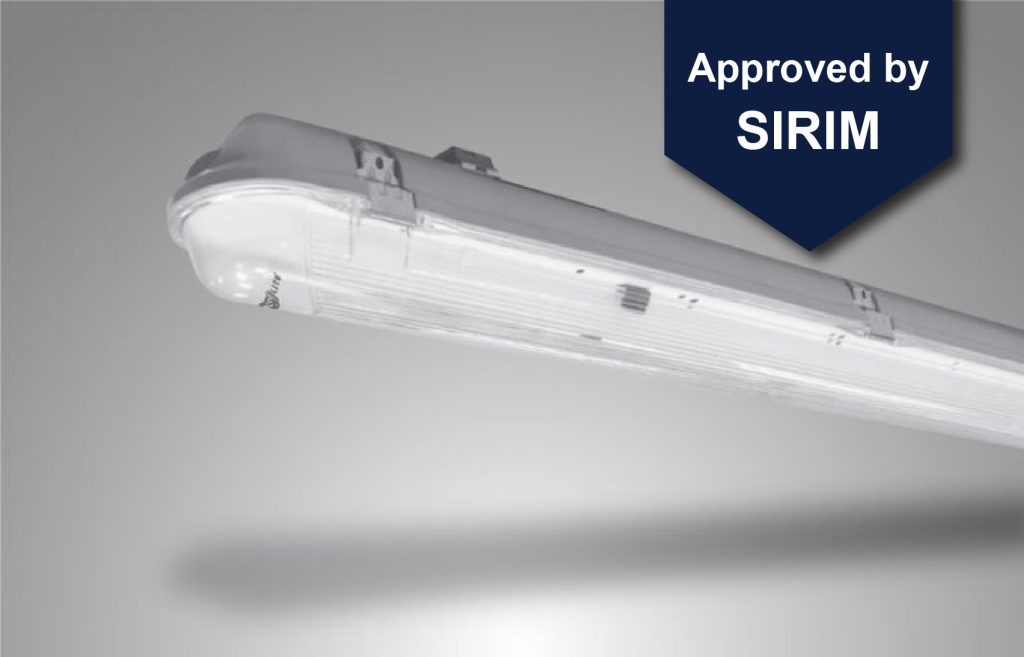

SCR LED Linear Weatherproof
Feature
IP 65 weatherproof batten is a durable, robust polycarbonate base and diffuser. Gear tray retaining strap for easy installation and maintenance. Knockout and IP gland supplied for connections and through wiring. Use only the fixing brackets supplied, screws should not be used directly through the base.
Application
Ideal for car parks. loading bays, corridors, warehouses, workshops and laboratories.Â
Specification
Model
SCR A4 120
SCR B4 220
SCR B4 140
SCR D4 240
Nominal Power
12W
17W
23W
34W
23W
33W
46W
68W
Nominal System Lumen Output
1250 lm
1800 lm
2450 lm
3450 lm
2550 lm
3600 lm
5050 lm
7250 lm
Nominal System Efficacy
104 lm/W
106 lm/W
107 lm/W
101 lm/W
111 lm/W
109 lm/W
110 lm/W
107 lm/W
LED Driver
Philips CertaDrive
Light Source
Philips CertaFlux
Colour Temperature (CCT)
3000K/4000K/6500K
Input Voltage
240V, 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~+ 35ºC
Power Factor
0.95PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Polycarbonate
Ingress Protection
IP65
Impact Protection
IK08

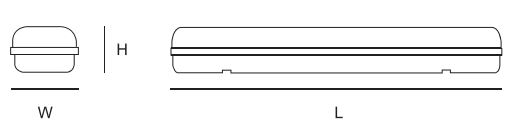

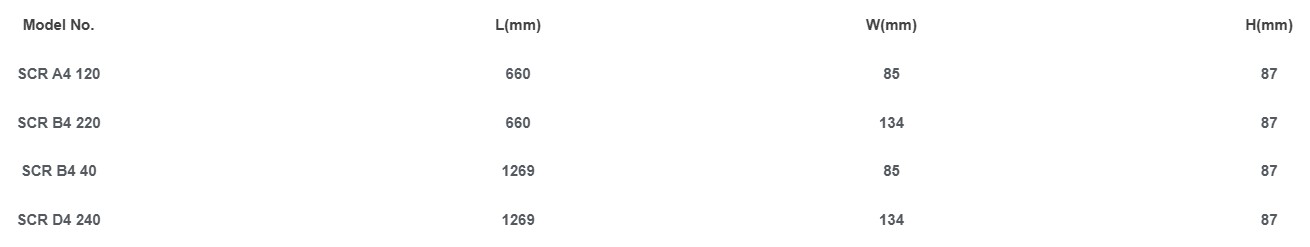

Dimension

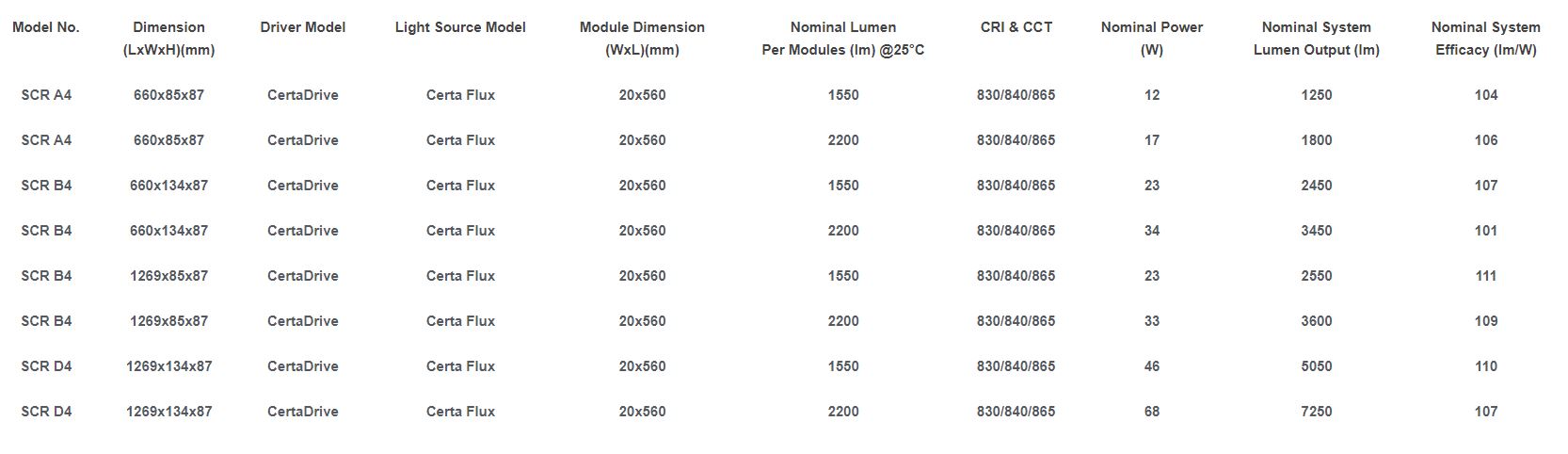

Ordering Information
