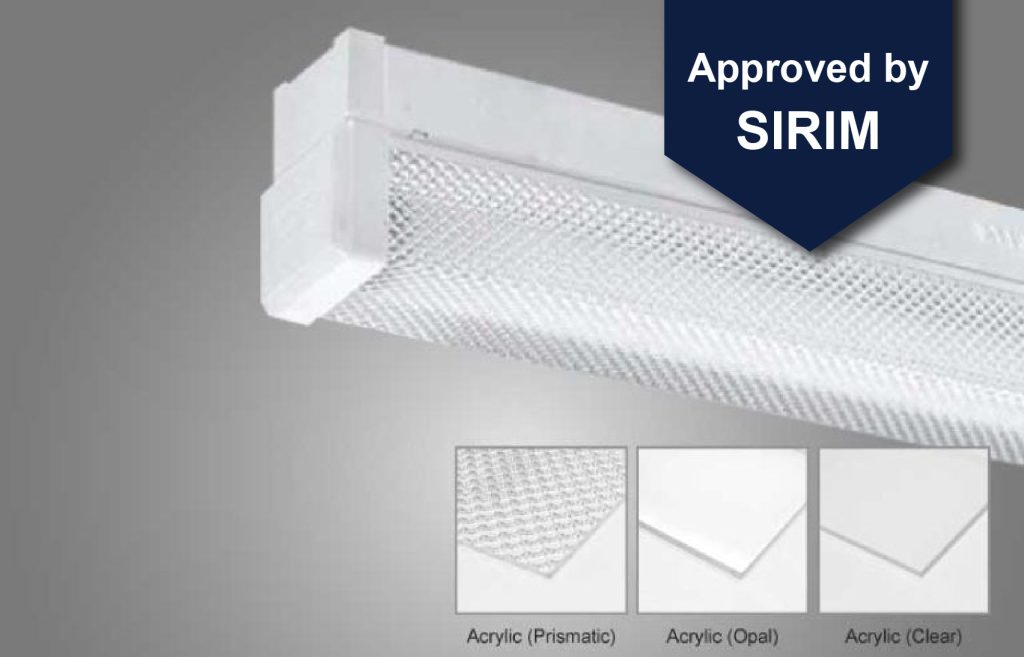

SD T8 Daikon Diffused Batten

Feature

Daikon diffused batten provides visual comfort by reducing direct glare from the light source. Features with plastic snap-on endcap design for simple installation. Various type of diffuser for good upward light distribution and greater aesthetic appeal.

Application

Suitable for indoor application, corridors, staircase, walkway, lift lobby and retails shop.

Download

Specification

Model

SD 1A 120

SD 2A 220

SD 1C 140

SD 2C 240

Nominal Power

8W

16W

14W

28W

Nominal System Lumen Output

987 lm

1727 lm

1924 lm

3819 lm

Nominal System Efficacy

121 lm/W

107 lm/W

140 lm/W

136 lm/w

Light Source

SJ Lite T8 LED Tube (HE)

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

>0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Cold Roll Steel

Ingress Protection

IP20

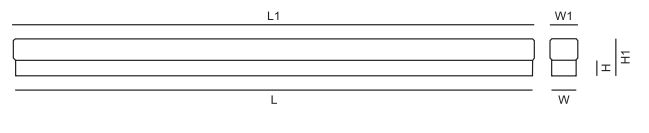

Dimension

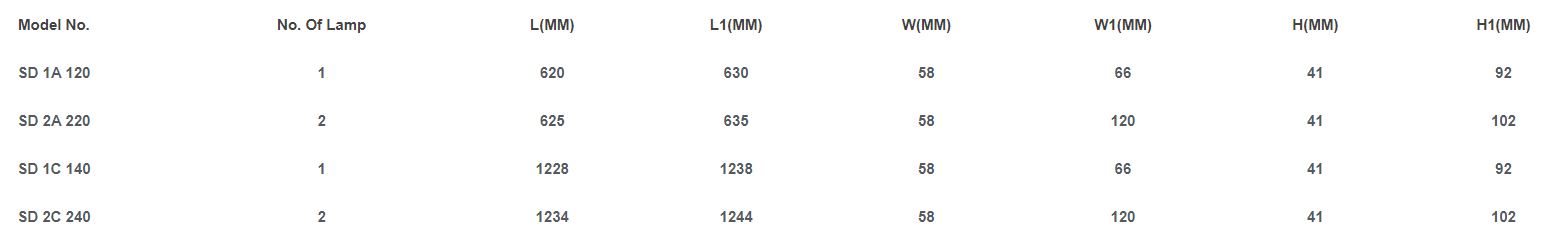

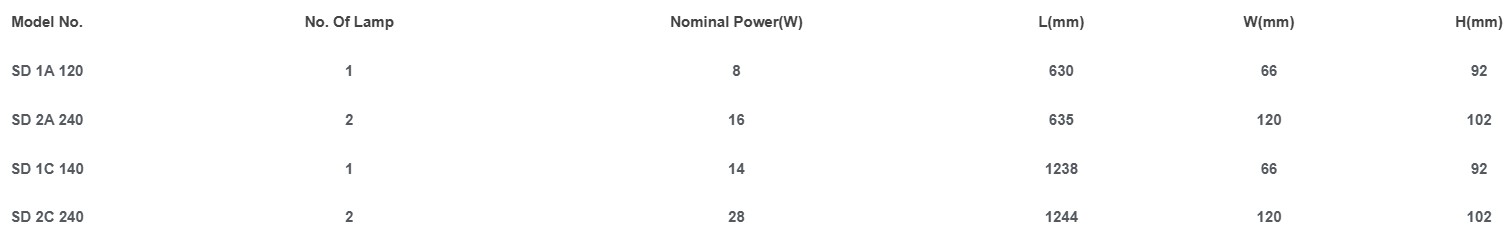

Ordering Information
