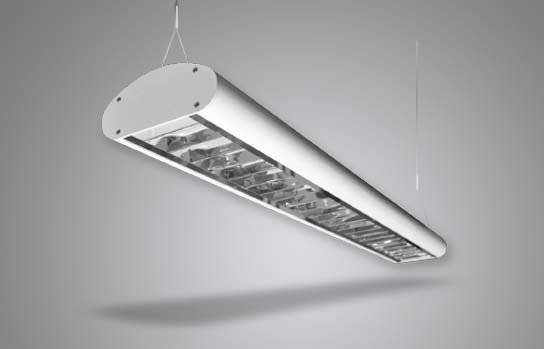

SEC Linear Trunking

Feature

Curve shape combines with parabolic louvre for an efficient profile with better glare control and bat wing light distribution. Curvelite can also be supplied in a continuous run configuration.

Application

Mainly use for general lighting in offices, supermarkets & complexes.

Download

Specification

Model

SEC A5

Norminal Power

24W

34W

Norminal System Lumen Output

3150 lm

4180 lm

Norminal System Efficacy

131 lm/W

123 lm/W

LED Driver

Tridonic LC

Light Source

Tridonic LLE

Colour Temperature (CCT)

3000K/4000K/6500K

Input Voltage

240V~50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hrs (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

>0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Extruded Aluminium

Ingress Protection

IP20

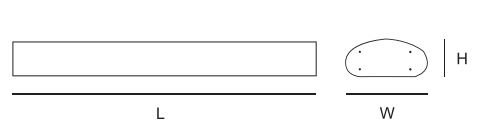

Dimension

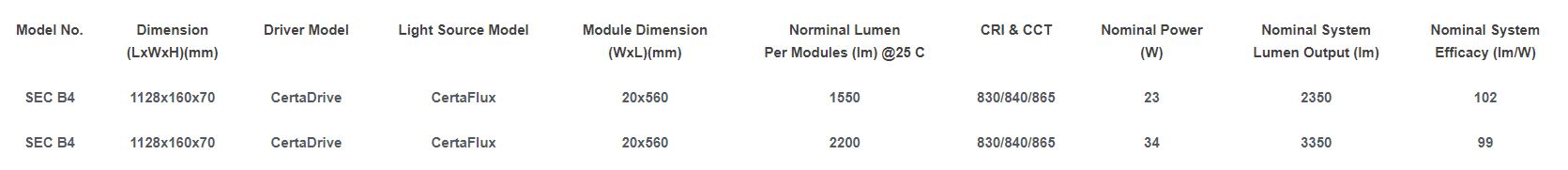

Ordering Information
