SEF Surface Linear Trunking

Feature

Fixture constructed of an extruded aluminum housing. Clip in frosted diffuser for uniform light distribution. Field adjustable cable hanger can be located at nearly any point along the fixture length. Each trunk can be installed as standalone unit or as modular unit to be assembled continuously with only one end feed. Up to 3m in single piece without joins. Continuous runs fitted with quick connects for simple, efficient wiring. Model variations offered for surface and cable suspended applications. Flexible solution for various application as vary beam optics can be selected.

Application

Ideal for offices, schools, commercial, hospital and residential.

Specification

Model

SEF A5

SEF B5

Nominal Power

12 W

18 W

25 W

34 W

Nominal System Lumen Output

1510 lm

2050 lm

3240 lm

4280 lm

Nominal System Efficacy

126 lm/w

114 lm/w

130 lm/w

126 lm/w

LED Driver

Tridonic LC

Light Source

Tridonic LLE

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hrs (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

>0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Extruded Aluminum

Ingress Protection

IP20

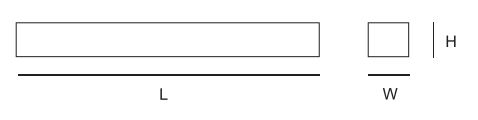

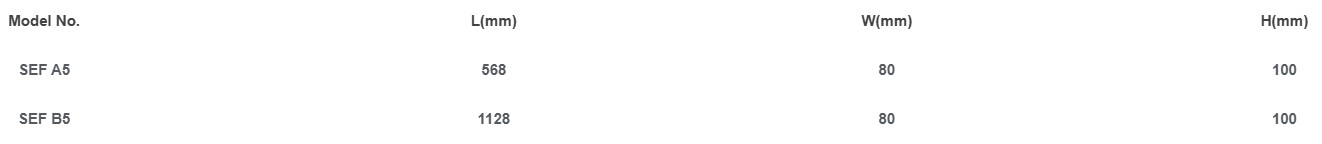

Dimension

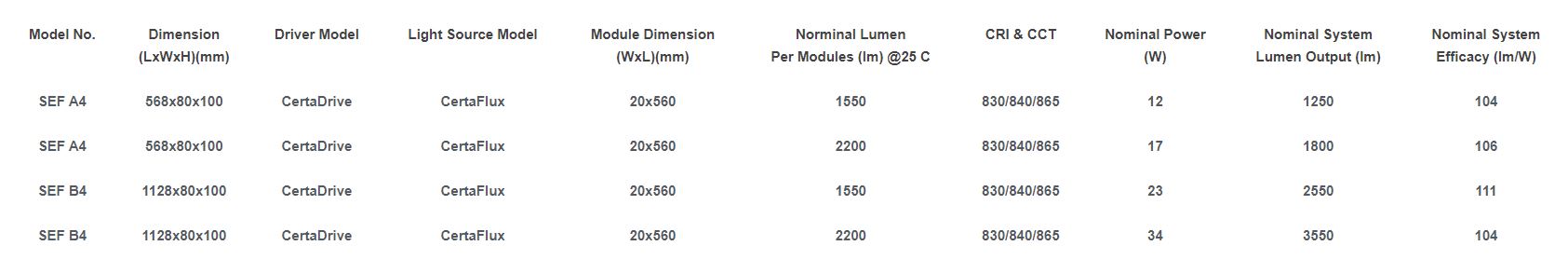

Ordering Information
