SEU

Feature

Aesthetically designed LED Linear Series suitable for suspended downward type with housing made from high-quality extruded aluminum. It provides low-glare illumination and can be installed as a standalone unit or as a continuous modular units.

Application

Ideal for offices, schools, commercial, hospital, department stores and hypermarkets.

Download

Specification

Model

SEU A5

SEU B5

Nominal Power

18 W

34 W

Nominal System Lumen Output

1800 lm

3700 lm

Nominal System Efficacy

100 lm/w

108 lm/W

LED Driver

Tridonic LC

Light Source

Tridonic LLE

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

240V, 50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hrs (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

>0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Extruded Aluminum

Ingress Protection

IP20

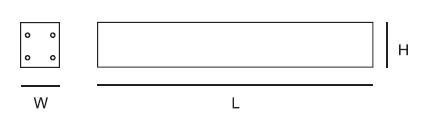

Dimension

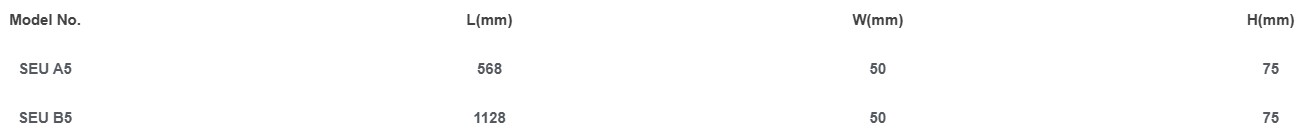

Ordering Information
