Products
SFS Linear Diffused Batten
Feature
Provide high efficiency and even light distribution. Easy access for installation and maintenance. Allows end to end installation.
Application
Suitable for most application in commercials, industrial and domestic areas.
Specification
Model
SFS A5 SO (2ft)
SFS A5 HO (2ft)
SFS A7 SO (2ft)
SFS A7 HO (2ft)
Nominal Power
14W
20W
14W
20W
Nominal System Lumen Output
1720 lm
2330 lm
1570 lm
2280 lm
Nominal System Efficacy
123 lm/W
117 lm/W
112 lm/W
114 lm/W
Model
SFS B5 SO (4ft)
SFS B5 HO (4ft)
SFS B7 SO (4ft)
SFS B7 HO (4ft)
Nominal Power
25W
36W
25W
36W
Nominal System Lumen Output
3680 lm
4860 lm
3230 lm
4720 lm
Nominal System Efficacy
147 lm/W
135 lm/W
129 lm/W
131 lm/W
LED Driver
Tridonic LC
Tridonic LC
Osram IT FIT
Osram IT FIT
Light Source
Tridonic LLE
Tridonic LLE
Osram BA-LIN
Osram BA-LIN
Colour Temperature (CCT)
3000K/4000K/6500K
Input Voltage
240V ~ 50Hz
Colour Rendering Input (CRI)
>80
Luminaire Rated Life
50,000hrs (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
>0.9PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Insulation Classification
IP20

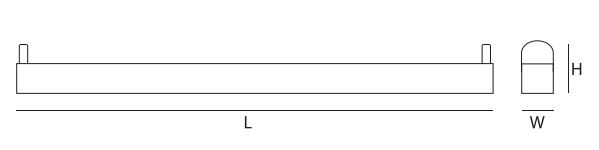

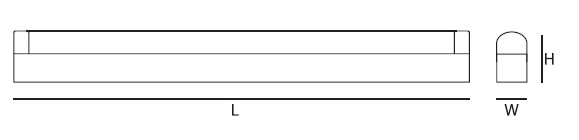

Dimension

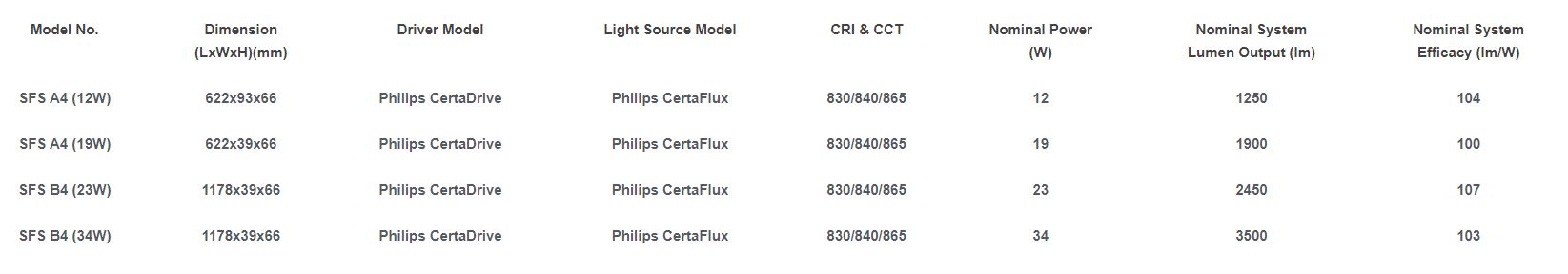

Ordering Information
