Products
SGB Green Batten
Feature
Designed for ceiling and pendant using suspension system with diffuser for visual comfort. LED green batten highlighting the use of a new generation of low power and high power LED as light source. Exceptional aesthetic ambience. Higher transmittance with speical diffusion additivies. Greater diffusion with better lamp hiding.
Application
Ideal for offices, retail stores, supermarkets, school and hotels.
Specification
Model
SGB B5 SO (2ft)
SGB B5 HO (2ft)
SGB B7 SO (2ft)
SGB B7 HO (2ft)
Nominal Power
25W
36W
25W
36W
Nominal System Lumen Output
3020 lm
4040 lm
2710 lm
3970 lm
Nominal System Efficacy
121 lm/W
112 lm/W
108 lm/W
110 lm/W
Model
SGB D5 SO (4ft)
SGB D5 HO (4ft)
SGB D7 SO (4ft)
SGB D7 HO (4ft)
Nominal Power
49W
72W
49W
72W
Nominal System Lumen Output
4840 lm
7710 lm
5330 lm
7720 lm
Nominal System Efficacy
99 lm/W
107 lm/W
109 lm/W
107 lm/W
LED Driver
Tridonic LC
Tridonic LC
Osram IT FIT
Osram IT FIT
Light Source
Tridonic LLE
Tridonic LLE
Osram BA-LIN
Osram BA-LIN
Colour Temperature (CCT)
3000K/4000K/6500K
Input Voltage
240V ~ 50Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hrs (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
>0.9PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Cold Roll Steel
Ingress Protection
IP20
Impact Protection
IK07

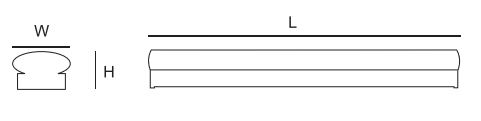

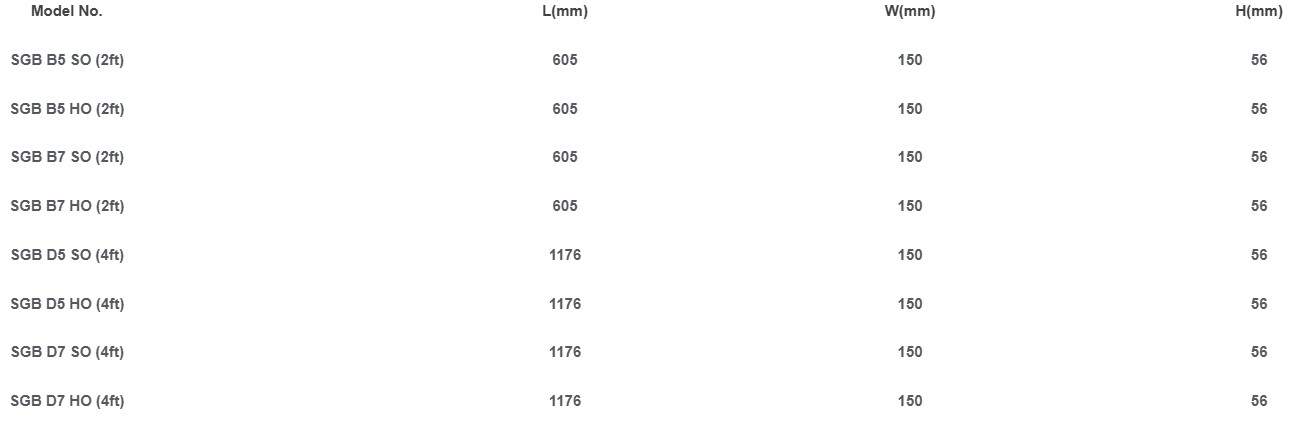

Dimension

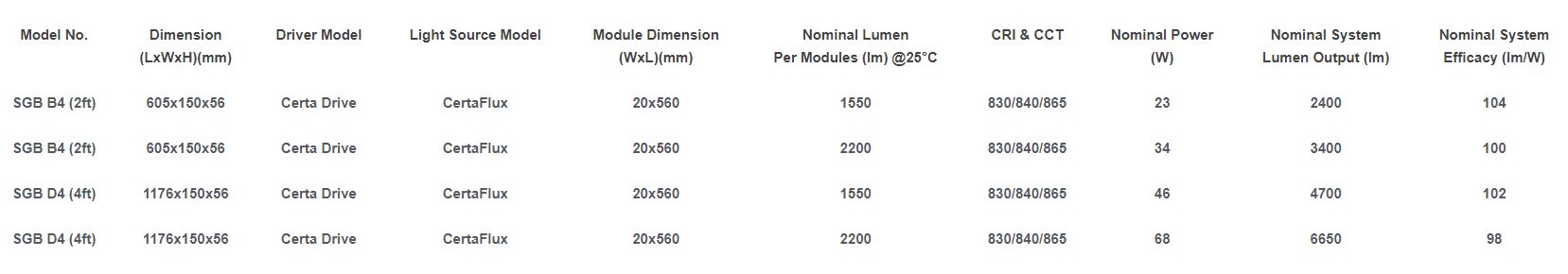

Ordering Information
