SL126 Spotlight Series

Feature

Designed for surface mounted with high performance led light source. Provides optimal light distribution and energy savings.

Application

Ideal for commercial building, lobby, conventional hall, ballroom, and concourse.

Download

Specification

Model

SL126.2 (9W)

SL126.3 (9W)

SL126.3 (14W)

SL126.3 (19W)

SL126.4 (24W)

Nominal Power

9.4W

13.5W

18.5W

23W

Nominal System Lumen Output

1360 lm
1430 lm
1475 lm
1490 lm

1810 lm
1905 lm
1960 lm
1980 lm

1115 lm
1175 lm
1210 lm
1220 lm

Nominal System Efficacy

159 lm/W
167 lm/W
172 lm/W
174 lm/W

147 lm/W
154 lm/W
159 lm/W
161 lm/W

131 lm/W
137 lm/W
141 lm/W
143 lm/W

Model

SL126.4 (27W)

SL126.4 (32W)

SL126.4 (34W)

SL126.5 (34W)

SL126.5 (41W)

Nominal Power

26.5W

30.7W

34.1W

40.2W

Nominal System Lumen Output

3615 lm
3805 lm
3915 lm
3955 lm

4010 lm
4220 lm
4345 lm
4390 lm

4635 lm
4880 lm
5025 lm
5075 lm

5210 lm
5485 lm
5645 lm
5700 lm

Nominal System Efficacy

150 lm/W
158 lm/W
162 lm/W
164 lm/W

144 m/W
151 lm/W
156 lm/W
158 lm/W

150 lm/W
158 lm/W
162 lm/W
164 lm/W

142 lm/W
150 lm/W
154 lm/W
156 lm/W

LED Driver

DONE

Light Source

Comfort COB

Colour Temperature (CCT)

2700K/ 3000K/ 4000K/ 5700K

Input Voltage

220~240V, 50/60Hz

Colour Rendering Index (CRI)

>80

UGR

>12

Luminaire Rated Life

50,000hr (L80/B10)

Operating Temperature

-20ºC ~ +40ºC

Power Factor

0.95PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Die-cast Aluminium

Ingress Protection

IP65

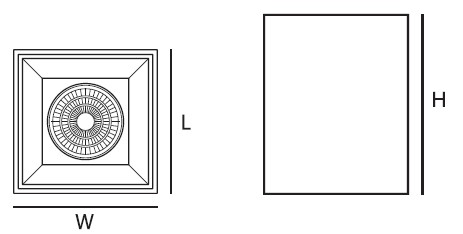

Dimension

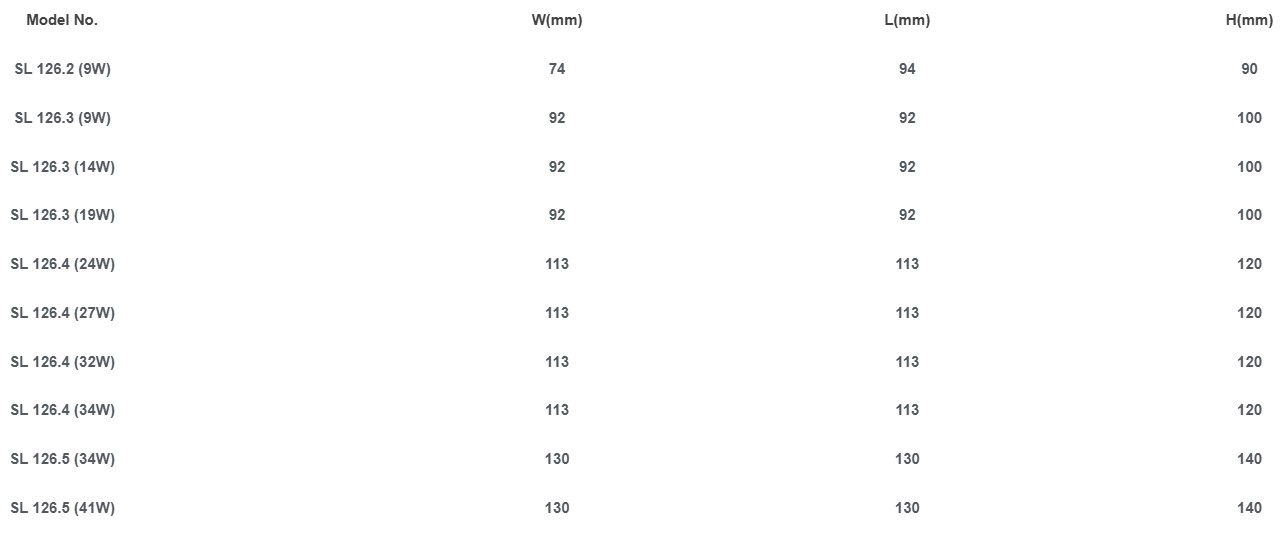

Ordering Information
