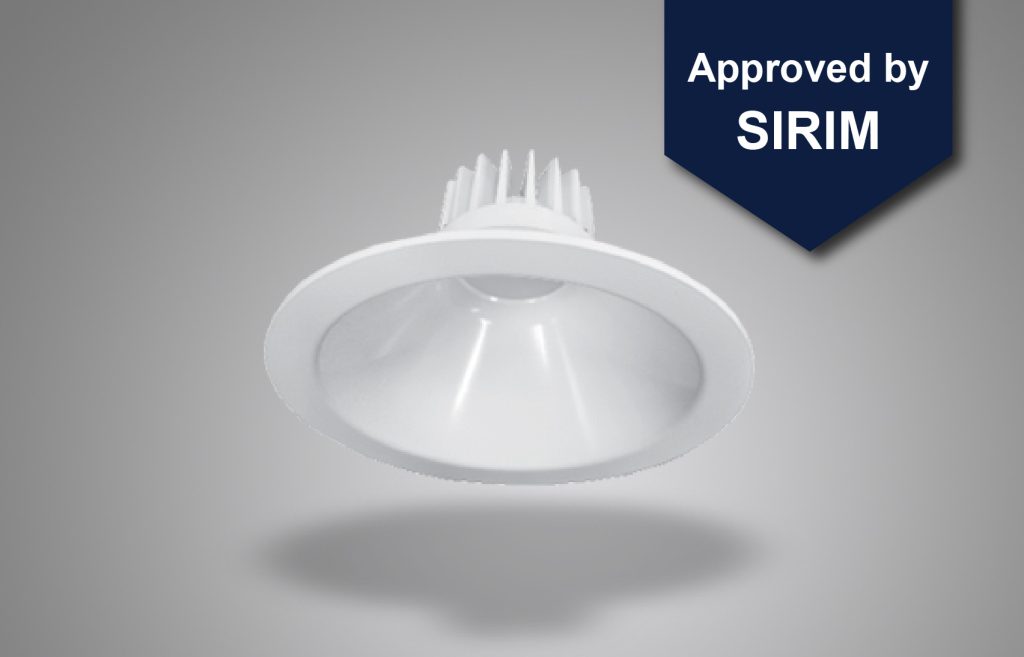

SL173/SL181 Downlight Series

Feature

Designed for recess mounting ceiling with better glare control. LED downlight lights with white reflector, highlighting the use of a new generation of low power and high power LED as light source.

Application

Ideal for commercial building, offices, conference room, classrooms, shops etc.

Download

Specification

Model

SL 173.10

SL 173.15

SL 181.10

SL 181.15

SL 181.20

SL 181.30

Nominal Power

10W

15W

10W

15W

20W

30W

Nominal System Lumen Output

800 lm

1210 lm

970 lm

1280 lm

2100 lm

3000 lm

Nominal System Efficacy

80 lm/W

81 lm/W

97 lm/W

85 lm/W

105 lm/W

100 lm/W

LED Driver

Tridonic/Xitanium

Light Source

Cree CXA

Colour Temperature (CCT)

3000K/4000K/6500K

Input Voltage

240V ~ 50Hz

Colour Rendering Index (CRI)

≥80

Luminaire Rated Life

50,000hrs (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

≥0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Die-cast Aluminum

Ingress Protection

IP20

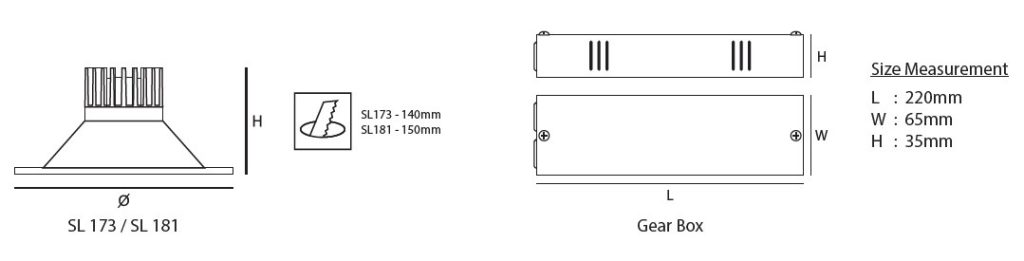

Dimension

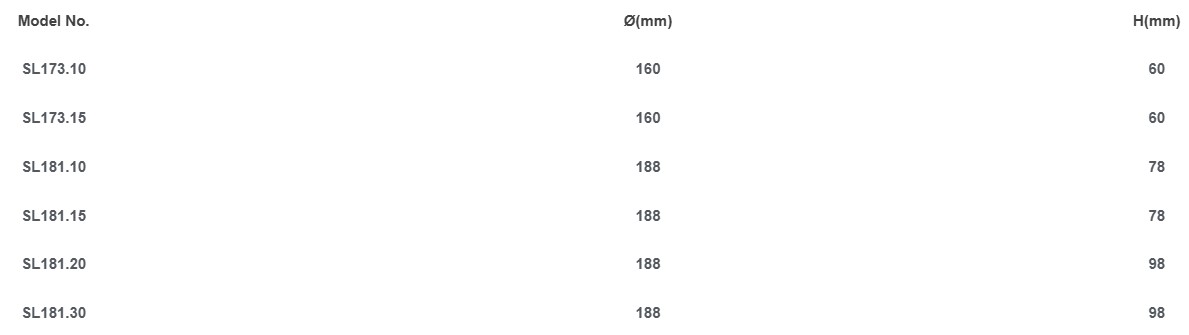

Ordering Information
