SL197 Downlight Series
Feature
Designed for recessed mounted with high performance led light source. Provides optimal light distribution and energy savings.
Application
Ideal for commercial building, lobby, conventional hall, ballroom and concourse.
Download
Specification
Model
SL197.3 (5W)
SL197.3 (9W)
SL197.3 (11W)
SL197.4 (14W)
Nominal Power
5.6W
9W
11.5W
14.5W
Nominal System Lumen Output
645 lm
665 lm
670 lm
1015 lm
1045 lm
1055 lm
1585 lm
1630 lm
1645 lm
1810 lm
1865 lm
1885 lm
Nominal System Efficacy
115 lm/W
119 lm/W
120 lm/W
113 lm/W
116 lm/W
117 lm/W
138 lm/W
142 lm/W
143 lm/W
125 lm/W
129 lm/W
130 lm/W
Model
SL197.4 (19W)
SL197.5 (27W)
SL197.5 (32W)
SL197.5 (34W)
Nominal Power
19.5W
24W
30.7W
34.5W
Nominal System Lumen Output
2725 lm
2805 lm
2830 lm
3185 lm
3280 lm
3315 lm
4220 lm
4345 lm
4390 lm
4690 lm
4830 lm
4875 lm
Nominal System Efficacy
140 lm/W
144 lm/W
145 lm/W
133 lm/W
137 lm/W
138 lm/W
137 lm/W
142 lm/W
143 lm/W
136 lm/W
140 lm/W
141 lm/W
LED Driver
VS Type ECXe
Light Source
Comfort COB
Colour Temperature (CCT)
3000K/ 4000K/ 5700K
Input Voltage
220~240V, 50/60Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L80/B10)
Operating Temperature
-20ºC ~ +40ºC
Power Factor
>0.95PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Die-cast Aluminium
Ingress Protection
IP20

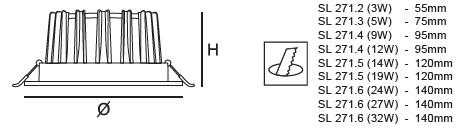

Dimension

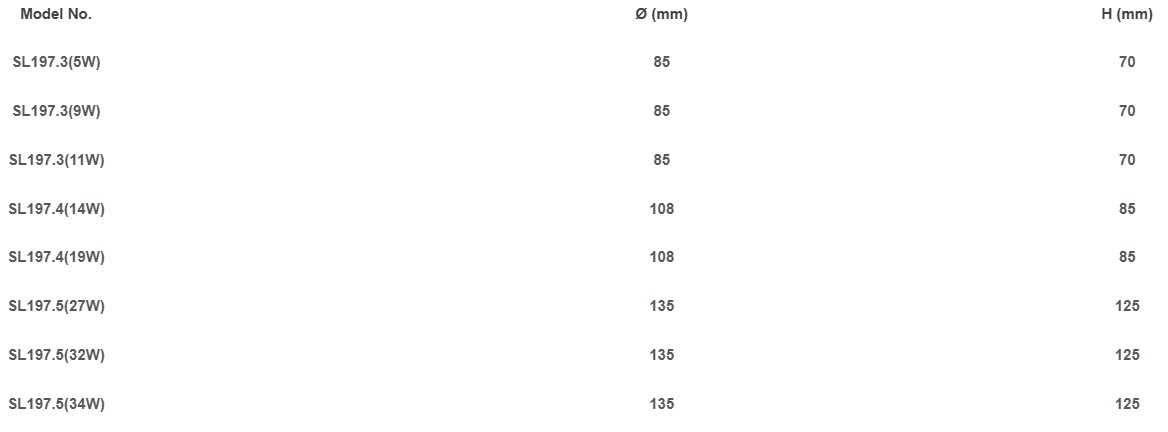

Ordering Information
