Products
SL206 Spotlight Series
Feature
Designed for recessed mounted with high performance led light source. Provides optimal light distribution and energy savings.
Application
Ideal for commercial building, lobby, conventional hall, ballroom and concourse.
Download
Specification
Model
SL206.1 (14W)
SL206.2 (14W)
SL206.3 (14W)
SL206.1 (19W)
SL206.2 (19W)
SL206.3 (19W)
Nominal Power
1x13.5W
2x13.5W
3x13.5W
1x18.5W
2x18.5W
3x18.5W
Nominal System Lumen Output
1x1810 lm
1x1905 lm
1x1960 lm
1x1980 lm
2x1810 lm
2x1905 lm
2x1960 lm
2x1980 lm
3x1810 lm
3x1905 lm
3x1960 lm
3x1980 lm
1x2730 lm
1x2875 lm
1x2960 lm
1x2990 lm
2x2730 lm
2x2875 lm
2x2960 lm
2x2990 lm
3x2730 lm
3x2875 lm
3x2960 lm
3x2990 lm
Nominal System Efficacy
147 lm/W
154 lm/W
159 lm/W
161 lm/W
147 lm/W
154 lm/W
159 lm/W
161 lm/W
147 lm/W
154 lm/W
159 lm/W
161 lm/W
162 lm/W
171 lm/W
176 lm/W
178 lm/W
162 lm/W
171 lm/W
176 lm/W
178 lm/W
162 lm/W
171 lm/W
176 lm/W
178 lm/W
Model
SL206.1 (27W)
SL206.2 (27W)
SL206.3 (27W)
SL206.1 (32W)
SL206.2 (32W)
SL206.3 (32W)
Nominal Power
1x26.5W
2x26.5W
3x26.5W
1x30.7W
2x30.7W
3x30.7W
Nominal System Lumen Output
1x3165 lm
1x3805 lm
1x3915 lm
1x3955 lm
2x3165 lm
2x3805 lm
2x3915 lm
2x3955 lm
3x3165 lm
3x3805 lm
3x3915 lm
3x3955 lm
1x4010 lm
1x4220 lm
1x4345 lm
1x4390 lm
2x4010 lm
2x4220 lm
2x4345 lm
2x4390 lm
3x4010 lm
3x4220 lm
3x4345 lm
3x4390 lm
Nominal System Efficacy
150 lm/W
158 lm/W
162 lm/W
164 lm/W
150 lm/W
158 lm/W
162 lm/W
164 lm/W
150 lm/W
158 lm/W
162 lm/W
164 lm/W
144 lm/W
151 lm/W
156 lm/W
158 lm/W
144 lm/W
151 lm/W
156 lm/W
158 lm/W
144 lm/W
151 lm/W
156 lm/W
158 lm/W
Model
SL206.1 (41W)
SL206.2 (41W)
SL206.3 (41W)
Nominal Power
1x40.2W
2x40.2W
3x40.2W
Nominal System Lumen Output
1x5210 lm
1x5485 lm
1x5645 lm
1x5700 lm
2x5210 lm
2x5485 lm
2x5645 lm
2x5700 lm
3x5210 lm
3x5485 lm
3x5645 lm
3x5700 lm
Nominal System Efficacy
142 lm/W
150 lm/W
154 lm/W
156 lm/W
142 lm/W
150 lm/W
154 lm/W
156 lm/W
142 lm/W
150 lm/W
154 lm/W
156 lm/W
LED Driver
VS Type ECXe
Light Source
Comfort COB
Colour Temperature (CCT)
2700K/ 3000K/ 4000K/ 5700K
Input Voltage
220~240V, 50/60Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L80/B10)
Operating Temperature
-20ºC ~ +40ºC
Power Factor
>0.95PF
Total Harmonic Distortion
≤20%
Insulation Class
Class I
Housing Material
Die-cast Aluminium
Ingress Protection
IP65

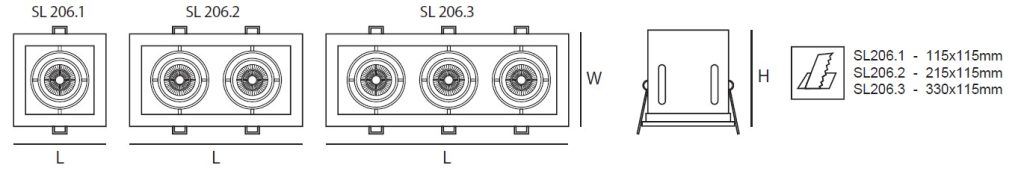

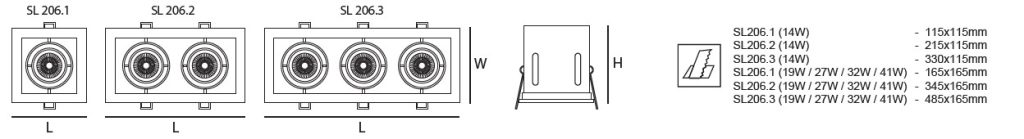

Dimension

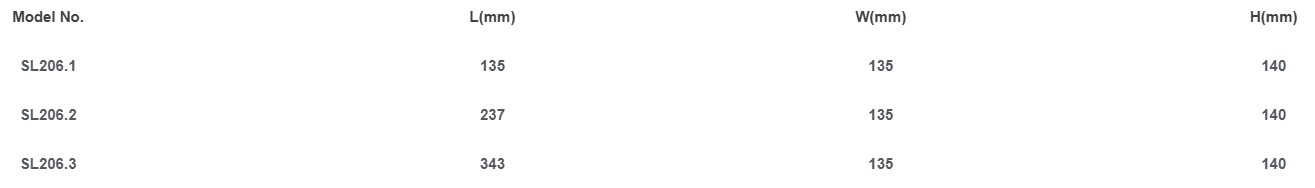

Ordering Information
