SL272 Adjustable Spotlight Series
Feature
Designed for consistent performance and excellent light output. Adjustable lighting direction and choice of beam angles. Available in white and black finishes.
Application
Ideal for commercial building, lobby, conventional hall, ballroom and concourse.
Download
Specification
Model
SL272.2 5W (90 x 70MM)
SL272.2 9W (90 x 70MM)
SL272.3 11W (114 x 95MM)
SL272.3 14W (114 x 95MM)
Nominal Power
5W
9W
11W
14W
Nominal System Lumen Output
665 lm
1045 lm
1630 lm
1865 lm
Nominal System Efficacy
133 lm/W
116 lm/W
148 lm/W
133 lm/W
Model
SL272.3 16W (114 x 95MM)
SL272.4 19W (138 x 120MM)
SL272.4 24W (138 x 120MM)
SL272.4 27W (138 x 120MM)
Nominal Power
16W
19W
24W
27W
Nominal System Lumen Output
2090 lm
2805 lm
3280 lm
3730 lm
Nominal System Efficacy
131 lm/W
148 lm/W
137 lm/W
138 lm/W
Model
SL272.5 34W (165 x 145MM)
SL272.6 41W (190 x 165MM)
SL272.6 49W (190 x 165MM)
SL272.6 53W (190 x 165MM)
Nominal Power
34W
41W
49W
53W
Nominal System Lumen Output
4830 lm
5465 lm
6060 lm
6430 lm
Nominal System Efficacy
142 lm/W
133 lm/W
124 lm/W
121 lm/W
LED Driver
VS Type ECXe
Light Source
Comfort COB
Colour Temperature (CCT)
2700K/ 3000K/ 4000K/ 5700K
Input Voltage
220~240V, 50/60Hz
Colour Rendering Index (CRI)
>80
Luminaire Rated Life
50,000hr (L80/B10)
Operating Temperature
-20ºC ~ +40ºC
Power Factor
>0.9PF
Total Harmonic Distortion
<20%
Insulation Class
Class I
Housing Material
Die-cast Aluminium
Ingress Protection
IP20

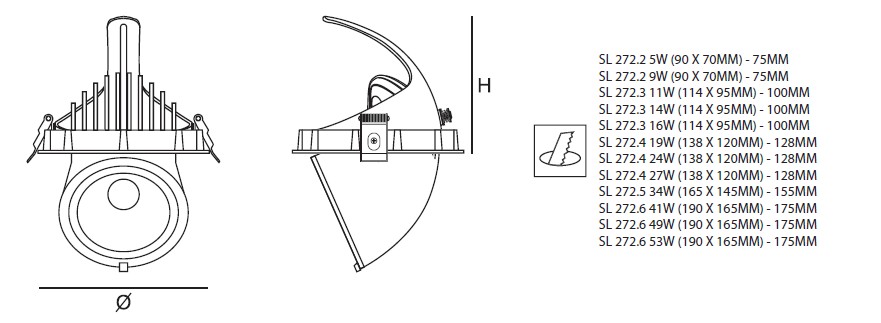

Dimension

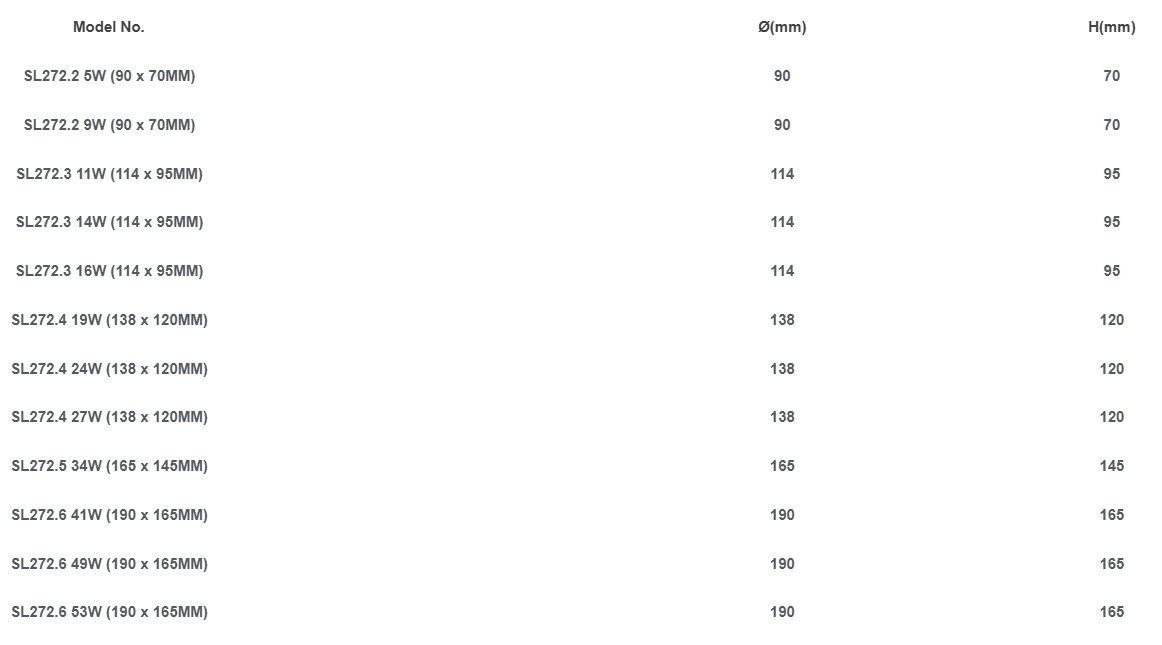

Ordering Information
