SL407 Highbay HE Series

Feature

An energy saving replacement for traditional highbay luminaires. Provide excellent lumen output, long lasting stability and splendid sight. Using High-end LED driver with long lifespan.

Application

Ideal for manufacturing plants, multi-purpose halls, industrial areas and warehouses.

Download

Specification

Model

SL 407.100

SL407.150

SL407.200

Nominal Power

98W

145W

198W

Nominal System Lumen Output

16000 lm

23000 lm

33000 lm

Nominal System Efficacy

163 lm/W

159 lm/W

167 lm/W

LED Driver

Mean Well

Light Source

Lumileds 3030

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

220-240V, 50/60Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

0.95PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Die Cast Aluminum

Ingress Protection

IP65

Weight

5kg

7.7kg

Dimension

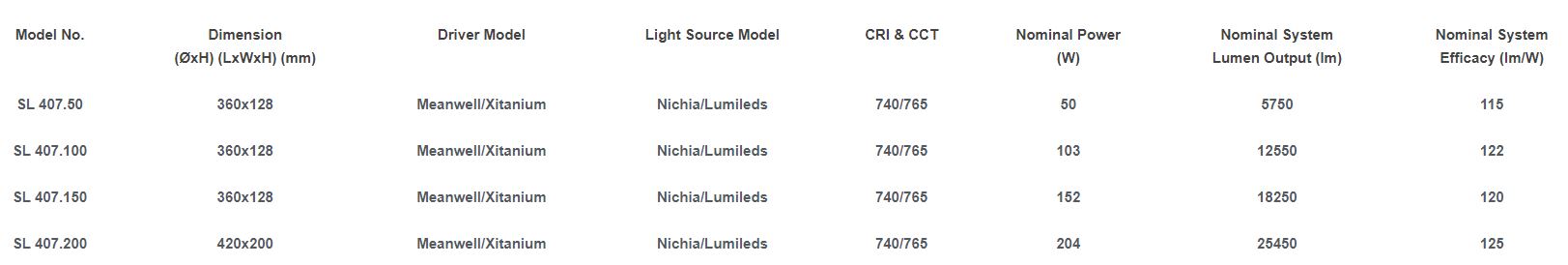

Ordering Information
