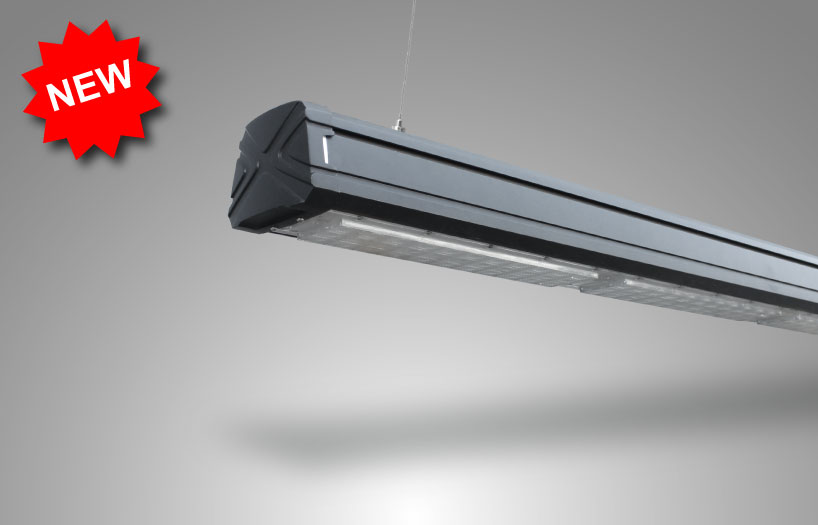

SL422 LED Linear Highbay

Feature

Powerful LED light source with a unique design. Extruded aluminum housing act as heat sink. Precise control of light distribution.

Application

Ideal for manufacturing plants, multi-purpose halls, industrial areas and warehouses.

Download

Specification

Model

SL 422.100

SL 422.150

SL 422.200

SL 422.300

Nominal Power

100W

150W

200W

300W

Nominal System Lumen Output

13000 lm

19500 lm

26000 lm

39000 lm

Nominal System Efficacy

130 lm/W

LED Driver

MEANWELL

Light Source

LUMILEDS

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

100-240V, 50/60Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hr (L70B50)

Operating Temperature

-25ºC ~ +40ºC

Power Factor

0.95PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Extruded Aluminum

Ingress Protection

IP65

Impact Protection

IK10

Weight

3.2 KG

4.4 KG

5.4 KG

8.6 KG

Dimension

Ordering Information
