SL713 LED Linear Fixed Series

Feature

Recessed LED linear light with anti-glare features. Provides precise light distribution.

Application

Ideal for Office, Commercial Building, Lobby, Residential, Retails and etc.

Download

Specification

Model

SL713.1C

SL713.3C

SL713.4C

SL713.5C

SL713.9C

SL713.10C

Nominal Power

3W

9W

12W

15W

27W

30W

Nominal System Lumen Output

240 lm

720 lm

960 lm

1200 lm

2160 lm

2400 lm

Nominal System Efficacy

80 lm/W

LED Driver

VS Type ECXe

Light Source

SMD LEDs

Colour Temperature (CCT)

3000K/ 4000K/ 6000K

Input Voltage

220~240V, 50/60Hz

Colour Rendering Index (CRI)

>90/80

Luminaire Rated Life

50,000hr (L80/B10)

Operating Temperature

-20ºC ~ +40ºC

Power Factor

>0.90PF

Total Harmonic Distortion

≤20%

Insulation Class

Class I

Housing Material

Aluminum

Ingress Protection

IP20

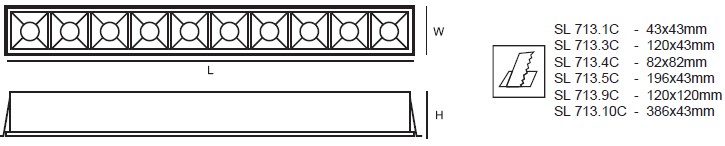

Dimension

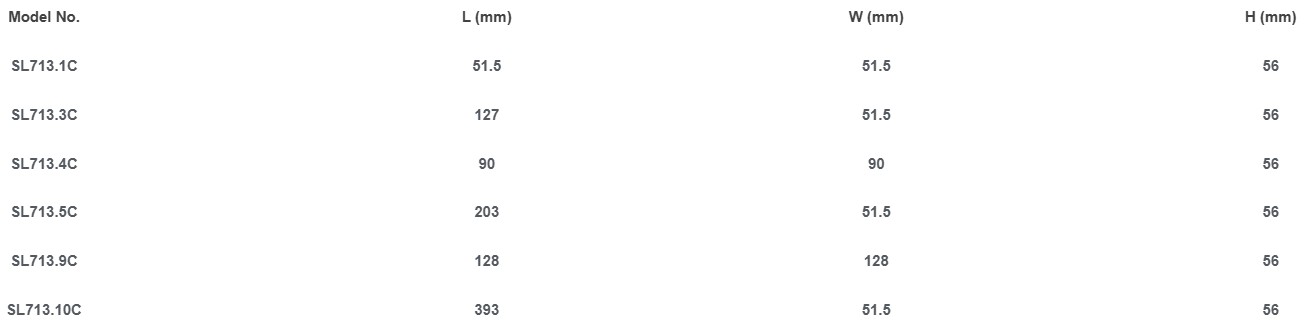

Ordering Information
