SP101

Feature

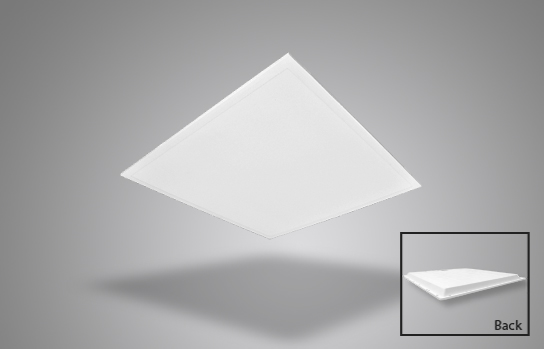

An efficient energy saving long life solution for replacing conventional fluorescent light fittings. Provide high efficient direct illumination. 30mm depth profile offer uniform distribution and deliver high lumen output. Luminous Efficacy up 100lm/w. High quality low flicker driver. Lightweight housing allow easy handling and installation.

Application

Suitable for offices, retail store, schools and etc.

Download

Specification

Model

SP 101.40 (2x2)

SP 101.40 (1x4)

SP 101.60 (2x4)

Nominal Power

40W

56W

Nominal System Lumen Output

4300 lm

4000 lm

5800 lm

Nominal System Efficacy

107 lm/W

100 lm/W

103 lm/W

LED Driver

Tridonic/Philips (Optional)

Light Source

SMD 2835

Colour Temperature (CCT)

3000K/ 4000K/ 6500K

Input Voltage

220-240V, 50/60Hz

Colour Rendering Index (CRI)

80 Luminaire Rated Life

30,000hr/50,000hr (L70B50)

Operating Temperature

-20ºC ~ +40ºC

Power Factor

0.9PF

Total Harmonic Distortion

≤20%

Insulation Class

Class II

Housing Material

CRS & Aluminium

Ingress Protection

IP20

Weight

-

Dimension

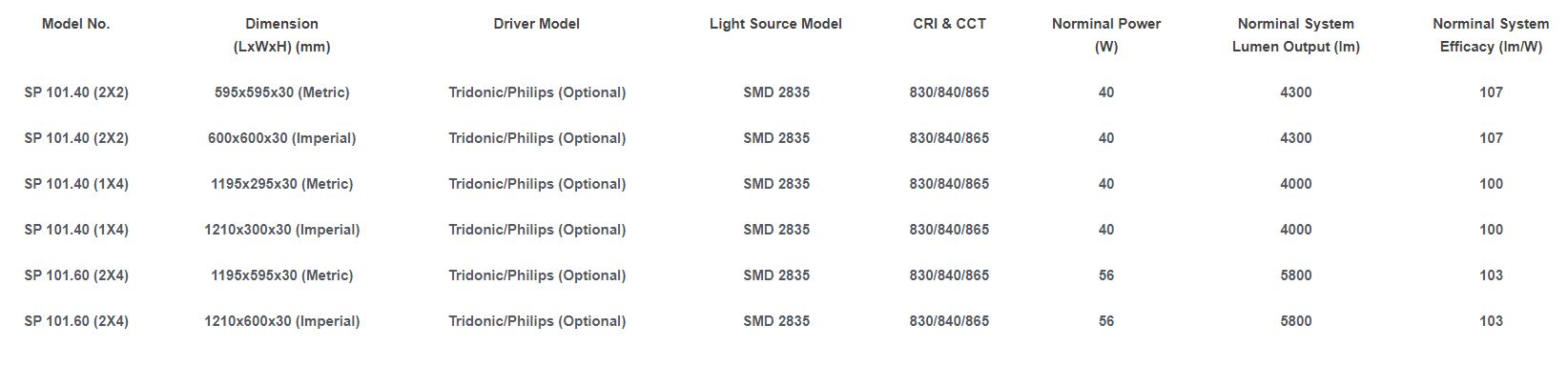

Ordering Information
