SP105
Feature
An elegant appearance directly replace the conventional grid panel with fluorescent tube. Combine with innovative optional and mechanical design features achieve a soft and uniform light distribution. Revolutionary LENS design to offer high efficiency lighting output with lower UGR of less then 16.
Application
Ideal for office, conference rooms, school, retain spaces, reception areas and etc.
Download
Specification
Model
SP 105.2.20 (2x2)
SP 105.2.30 (1x4)
SP 105.2.40 (2x4)
SP 105.3.30 (2x2)
SP 105.3.50 (2x4)
SP 105.3.60 (2x4)
Nominal Power
18W
28W
37W
29W
48W
53W
Nominal System Lumen Output
2400 lm
4000 lm
5300 lm
3700 lm
6900 lm
7500 lm
Nominal System Efficacy
133 lm/W
142 lm/W
143 lm/W
127 lm/W
143 lm/W
141 lm/W
LED Driver
Tridonic LC / Philips Xitanium
Light Source
SMD 2835
Colour Temperature (CCT)
3000K/ 4000K/ 6500K
Input Voltage
220-240V, 50/60Hz
Colour Rendering Index (CRI)
>90
UGR
<16
Luminaire Rated Life
50,000hr (L70B50)
Operating Temperature
-20ºC ~ +45ºC
Power Factor
0.95PF
Total Harmonic Distortion
≤20%
Insulation Class
Class II
Housing Material
Cold Roll Steel
Ingress Protection
IP40
Weight
1.8 KG
2.4 KG
4.0 KG
2.2 KG
4.4 KG
4.4 KG

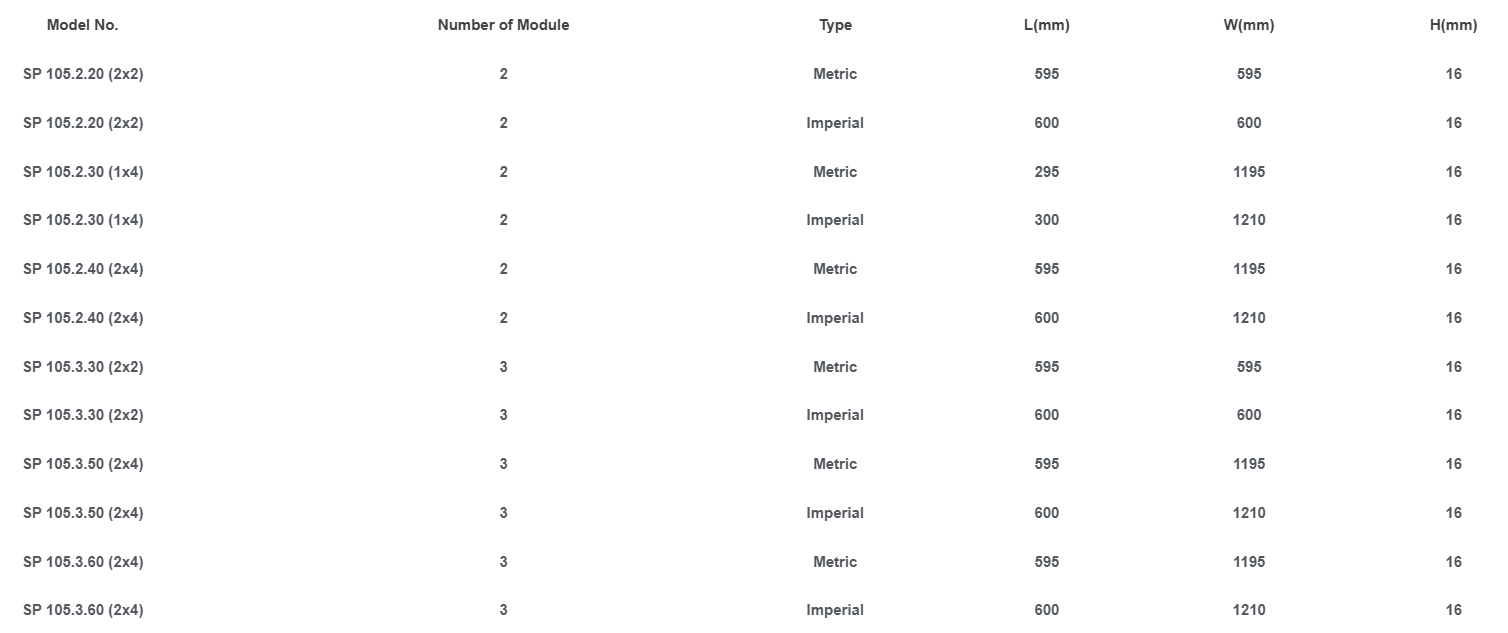

Dimension

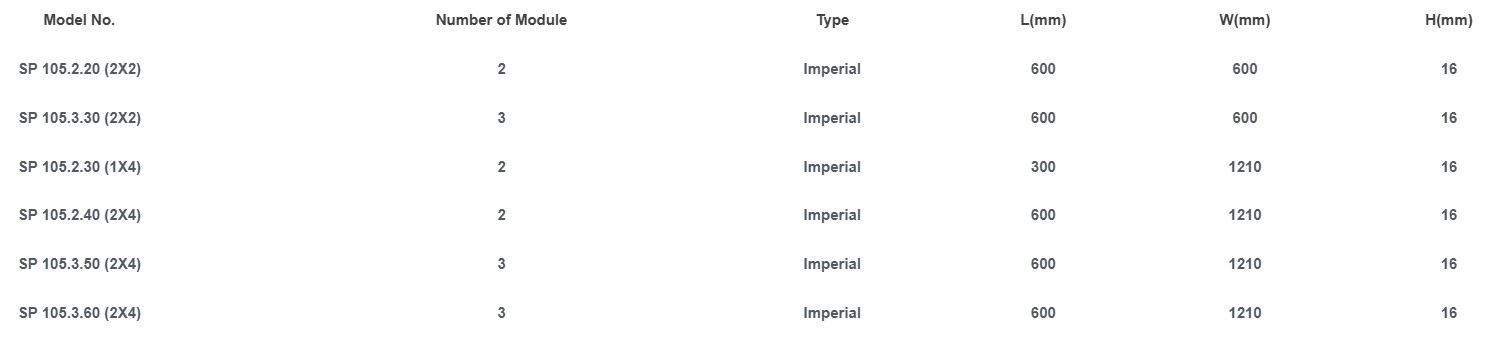

Ordering Information
