Surface Mounted – Diffused Fitting – SAC 240 / S (T8)

Feature

Suitable for ceiling or pendant mounting with suspension system. Mirror reflector held securely by treaded nut, offering large screw area using hand for fast installation. Allow a wide and efficient distribution of light. End to end continuously mounting from performed punch out type without additional drilling required.

Application

Ideal for use where lighting needs to be concentrated on certain area.

Download

Specification

Body

Made of heavy gauge sheet steel.

Diffuser

Wide choice of diffuser type for selection

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 16W

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

Dimension

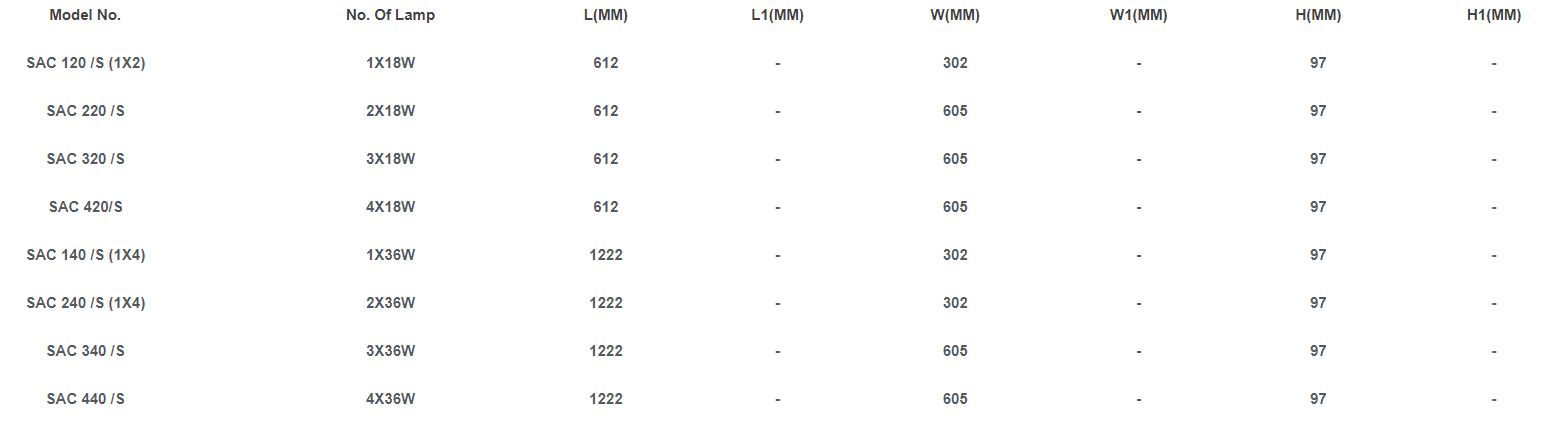

Ordering Information
