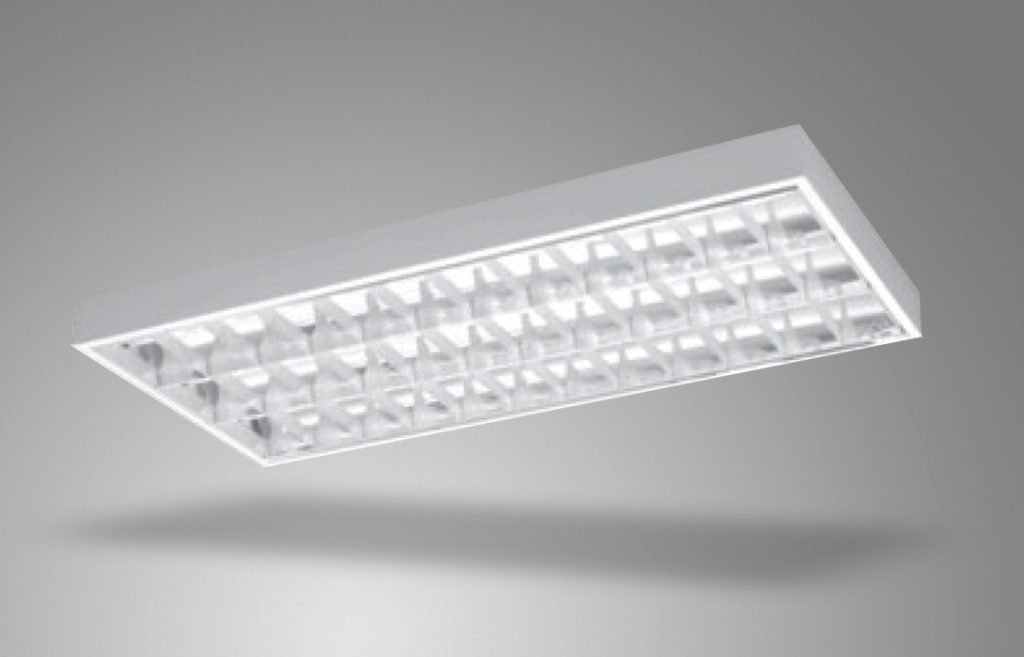

Surface Mounted – MOL Fitting – SAC 340 /S MOL (T8)

Feature

Designed for direct mounting to ceiling with single parabolic mirror optic louvre with Christmas profile cross blades. Louvre reflection by means of slide lock set and can be lowered and hang from either side.

Application

Ideal for general lighting in offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Anodized aluminum in either specular, semi specular or matt with profile cross blades.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W.

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

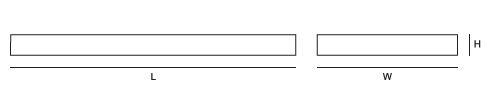

Dimension

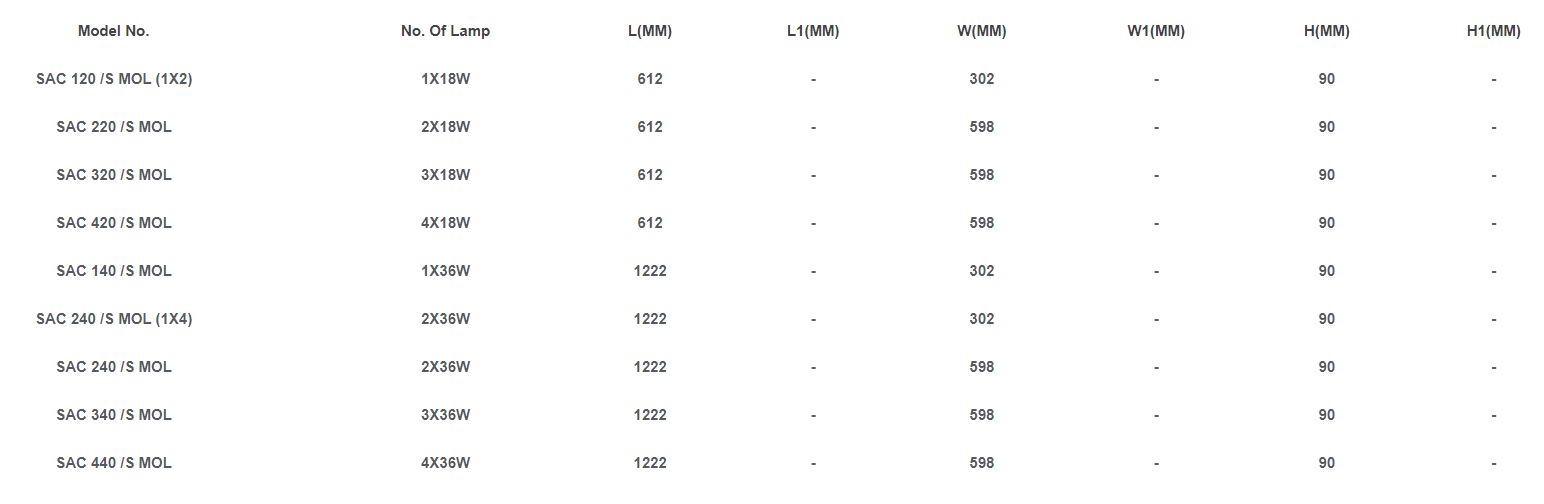

Ordering Information
