Surface Mounted – VDU Fitting – Perforated – SAC 414 VDU (T5)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ 500 cd/m² at reference angle above 65° all round. Available in single, twin, triple or quadruple lampways. Life or tilt, wishbone spring, rocket bolt or spring clip installation.

Application

Ideal for offices, schools, libraries, government building, commercial building where VDT Terminal are frequently used.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

Perforated sheet or white sheet

Reflector

High quality specular anodized aluminum

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamps of 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

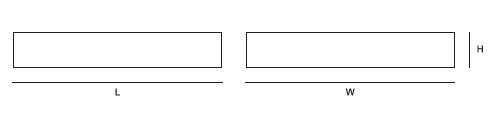

Dimension

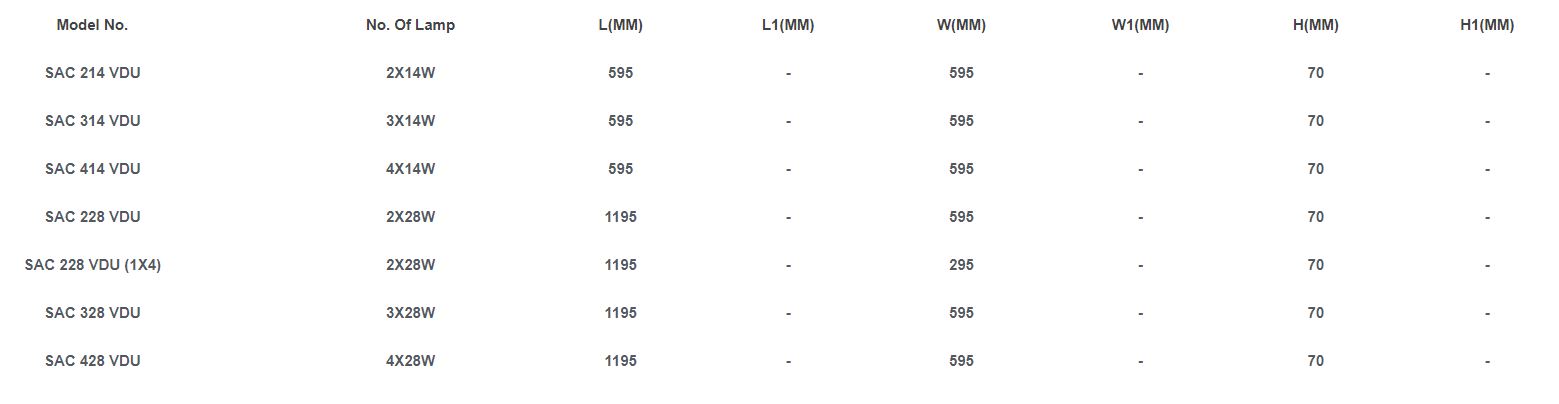

Ordering Information
