Surface Mounted – Wall Washer – SAC 240 (Washer) (T8)

Feature

Direct mounted on wall & ceiling with asymmetrical light distribution for uniform illumination of vertical surfaces. Designed for light objects hang on wall or vertical surfaces where directional lighting are made as certain area.

Application

Ideal for hospitals, schools, supermarkets & etc.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvres

Anodized aluminum in either specular, semi specular or matt finish.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vacuum Impregnated.

Condenser

Metallised Polypropylene Film

Starter

SERIES (4W-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material.

Optional Components

Fused terminal block/Electronic Ballast/Emergency pack

Optional Light Source

SJ Lite LED Tube is compatitble and replaceable (Not compatible for ECG/Emergency fitting)

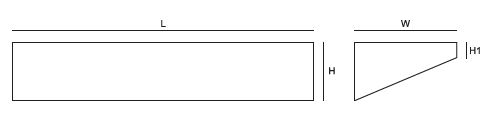

Dimension

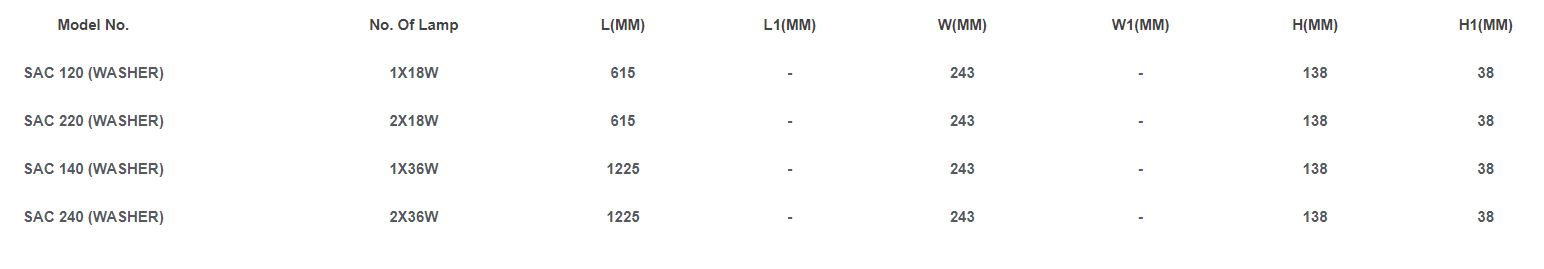

Ordering Information
