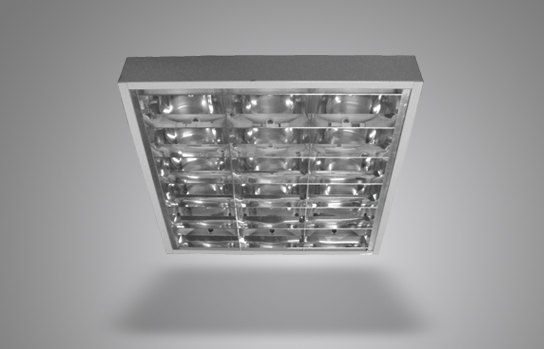

Surface T-Bar Mounted – VDU Fitting (Metric) – SSV 314 MM (T5)

Feature

Suitable for DSE application in accordance with CIBSE LG3 due to limited luminance L ≤ 500 cd/m² at reference angle above 65° all round. Designed for recessed exposed T-bar ceiling mounting double parabolic mirror optic louvre.

Application

Ideal for general lighting in offices, supermarkets and complexes.

Download

Specification

Body

Made of heavy gauge sheet steel.

Louvers

High quality anodized aluminum

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent T5 lamp of 14W & 28W

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

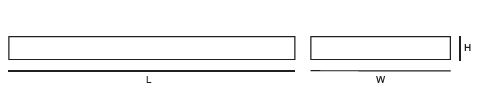

Dimension

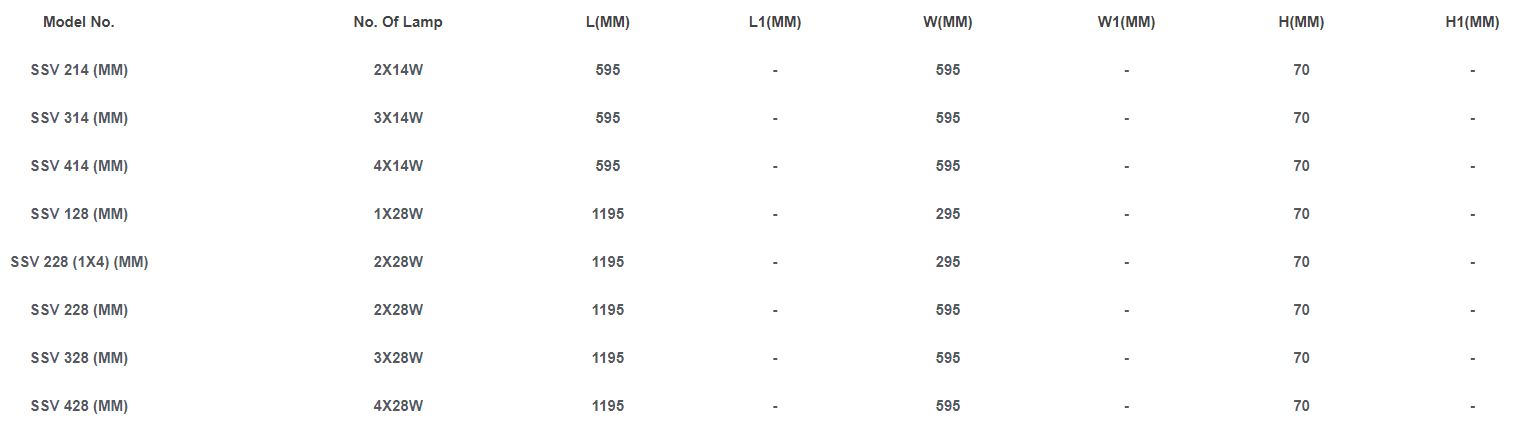

Ordering Information
