SWL Linear

Feature

Designed for recess mounting ceiling. LED double row panel light highlighting the use of a new generation of low power and high power LED as light source. Higher transmittance with special diffusion additives. Greater diffusion with better lamp hiding.

Application

Ideal for offices, retail stores, supermarkets, schools, hotels, factories, car parks and etc.

Download

Specification

Model

SWL A5 (1x2)

SWL B5 (1x4)

SWL B5 (2x2)

SWL D5 (2x4)

Nominal Power

18W

34W

47W

Nominal System Lumen Output

2420 lm

4960 lm

4800 lm

6380 lm

Nominal System Efficacy

134 lm/W

146 lm/W

141 lm/W

136 lm/W

LED Driver

Tridonic LC

Light Source

Tridonic LLE

Colour Temperature (CCT)

3000K/4000K/6500K

Input Voltage

240V~50Hz

Colour Rendering Index (CRI)

>80

Luminaire Rated Life

50,000hrs (L70B50)

Operating Temperature

-20ºC ~ +45ºC

Power Factor

>0.9PF

Total Harmonic Distortion

≤20%

Insulation Classification

Class I

Housing Material

Cold Roll Steel

Ingress Protection

IP20

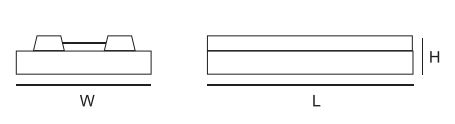

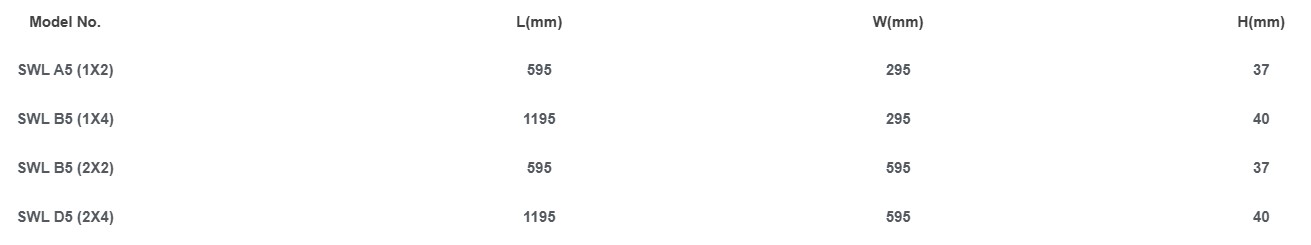

Dimension

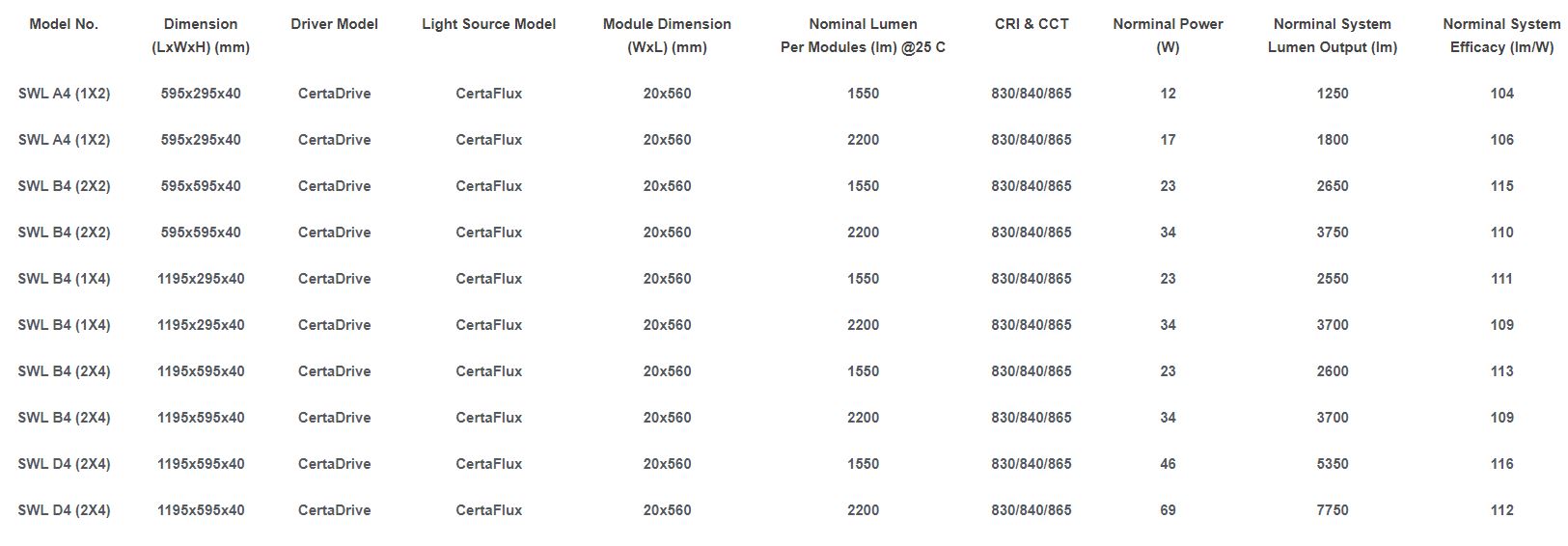

Ordering Information
