Vandal Proof Batten – Round – SWG 140 (T8)

Feature

Design for ceiling, wall and pendant using suspension system with square daikon diffuser for visual comfort. This fitting improves on visual comfort by reducing direct glare from the fluorescent tube. Lighting fixtures for more diffused light which softens surrounding objects. New plastic snap-on end-cap using variety type of diffuser for good upward light distribution and aesthetic appeal.

Application

Ideal for general applications where modest style is required.

Download

Specification

Body

Made of heavy gauge sheet steel.

Guard

Perforated metal piece

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

Dimension

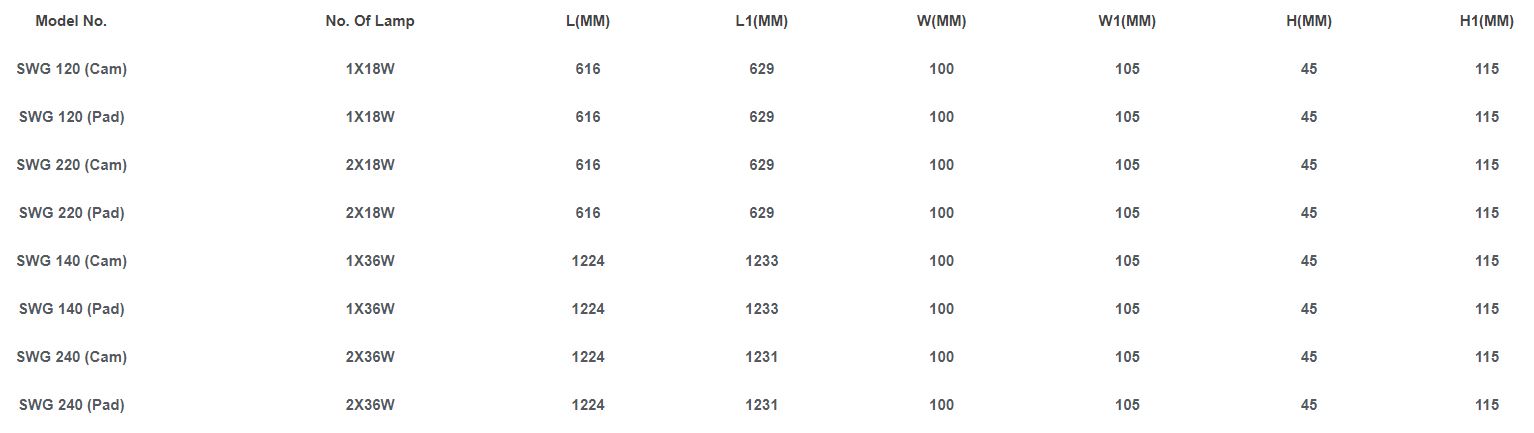

Ordering Information
