Vandal Proof Batten – Square (Narrow Body) – SWGN 240 (T8)

Feature

Suitable for ceiling, wall or pendant mounting. Heavy gauge galvanized steel epoxy coated wire guard. New plastic snap-on end-caps for easy installation of wire guard. High quality white epoxy powder coated finish. Large terminal block for ease in installation.

Application

Ideal for Public hallways, staircases and corridors.

Download

Specification

Body

Made of heavy gauge sheet steel.

Guard

Heavy gauge galvanized steel epoxy powder coated.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TLD lamp of 18W, 36W

Electrical Data

240V, 50Hz, Power factor 0.9

Wire

HR 105° C

Ballast

Polyester Vaccum Impregnated.

Condenser

Metallised Polypropylene Film.

Starter

SERIES (WW-22W), SINGLE (4W-80W)

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Electronic ballast/Emergency pack.

Optional Light Source

SJ Lite LED Tube is compatible with and replaceable (not compatible for ECG/Emergency fitting).

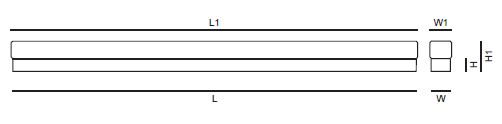

Dimension

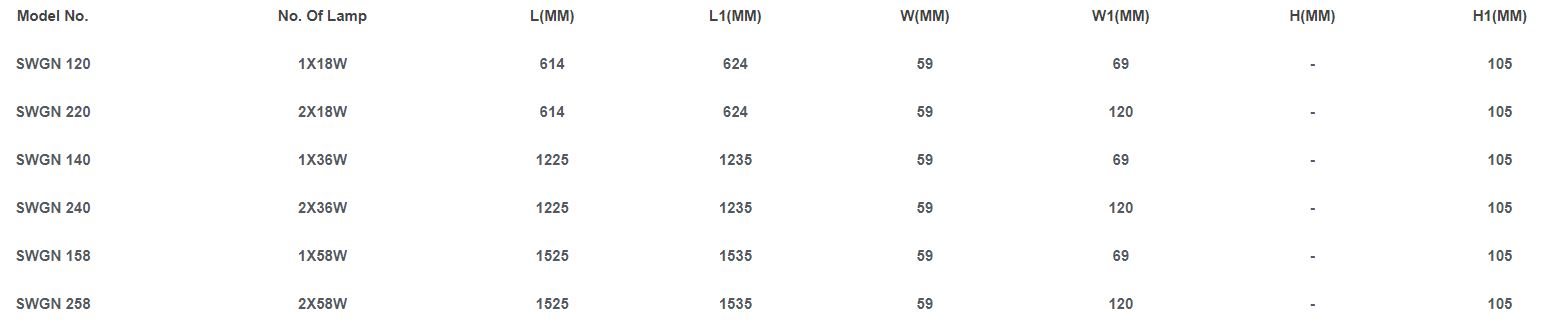

Ordering Information
