Vandal Proof Batten – Square – SWG 128

Feature

Suitable for ceiling, wall or pendant mounting using suspension system. Prevention against pilferage or any acts of vandalism. The wire guard is hinged on one side of the casing of easy maintenance and installation. Cover plate held securely by treaded nut, offering large screw area using hand for fast installation.

Application

Ideal for Public hallways, staircases, corridors and life lobbies.

Download

Specification

Body

Made of heavy gauge sheet steel.

Guard

Heavy gauge galvanized steel epoxy powder coated.

Paintwork

Fully coated with a high gloss white epoxy polyester powder, giving resilient finish.

Light Source

Fluorescent TL-5 lamp of 14/24W, 21/39W, 28/54W, 35/49W.

Electrical Data

240V, 50Hz, Power factor 0.95

Wire

HR 105° C

Ballast

Electronic Ballast

Lampholder/Starterholder

Moulded from Polycarbonate Material

Optional Component

Fused terminal block/Emergency pack.

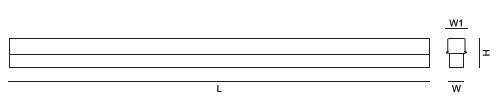

Dimension

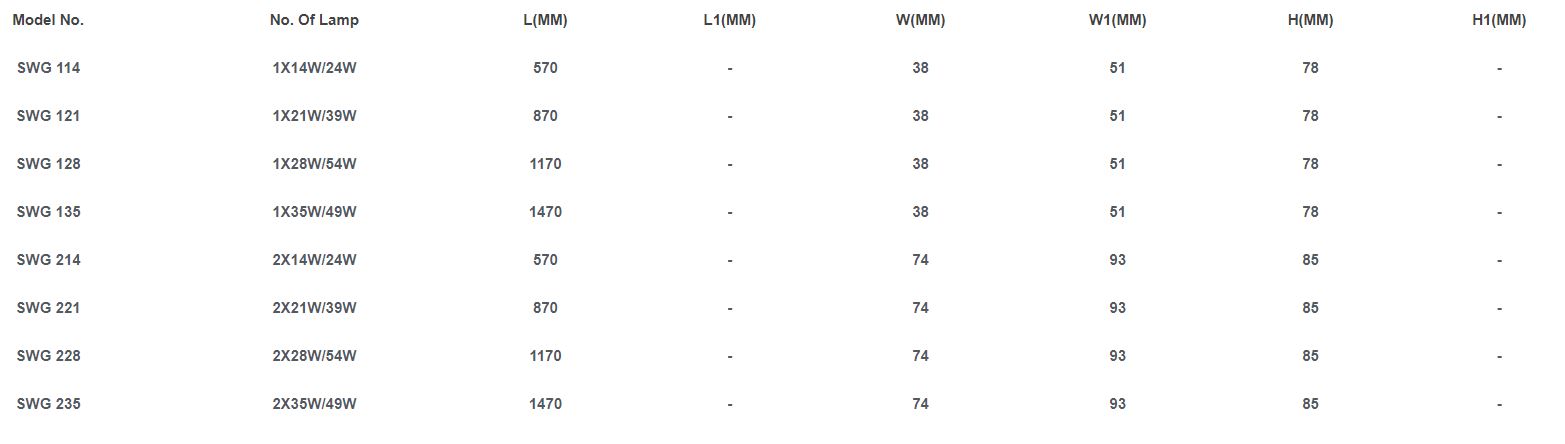

Ordering Information
